How To Use SWS Monitor

To carry out troubleshooting, operate scan tool MB991958 (M.U.T.-III Sub Assembly) as follows.

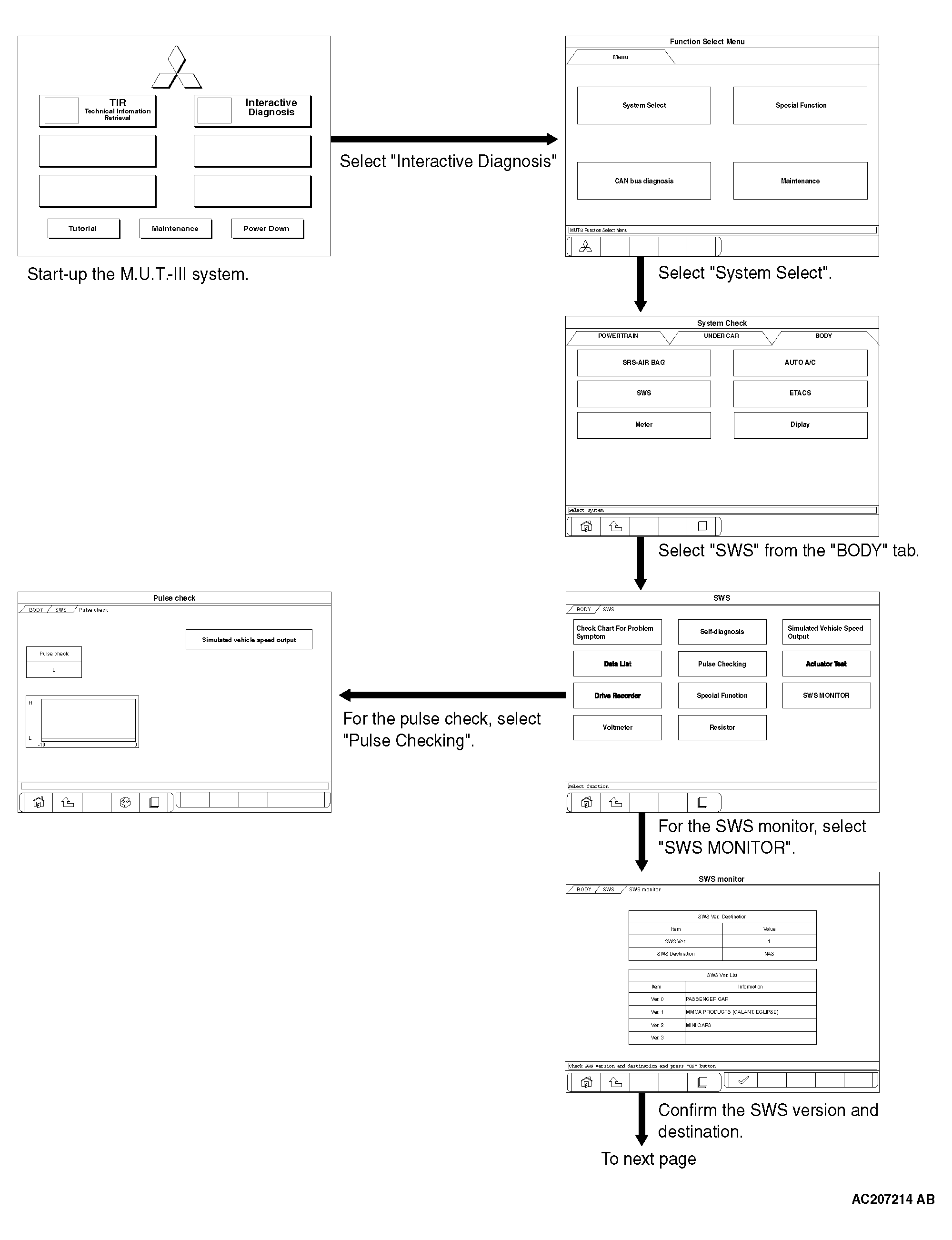

Fig 1: Identifying Scan Tool Flow Display (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

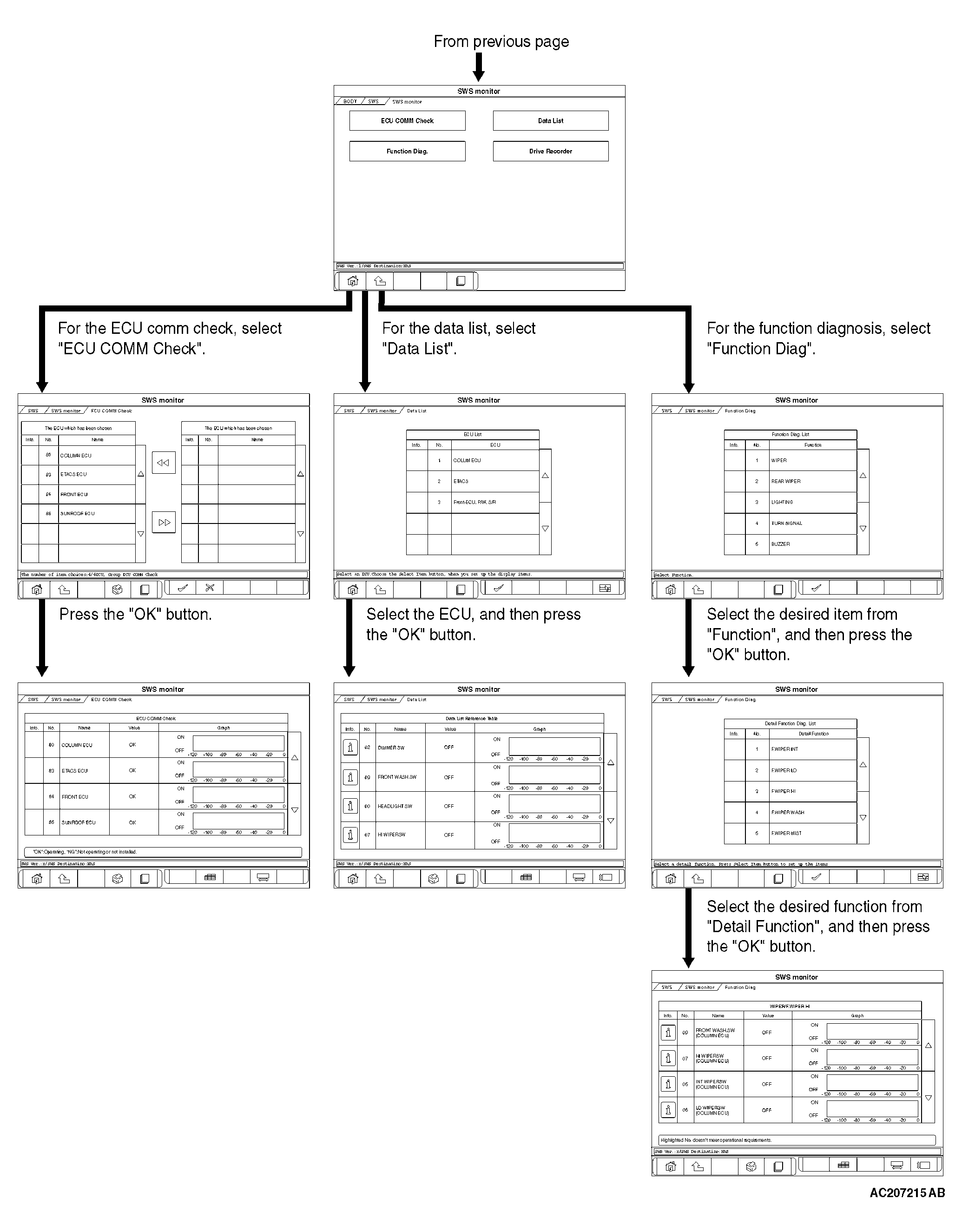

Fig 2: Identifying Scan Tool Flow Display (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
