General Circuit Diagram For The Power Windows
General Circuit Diagram For The Power Windows

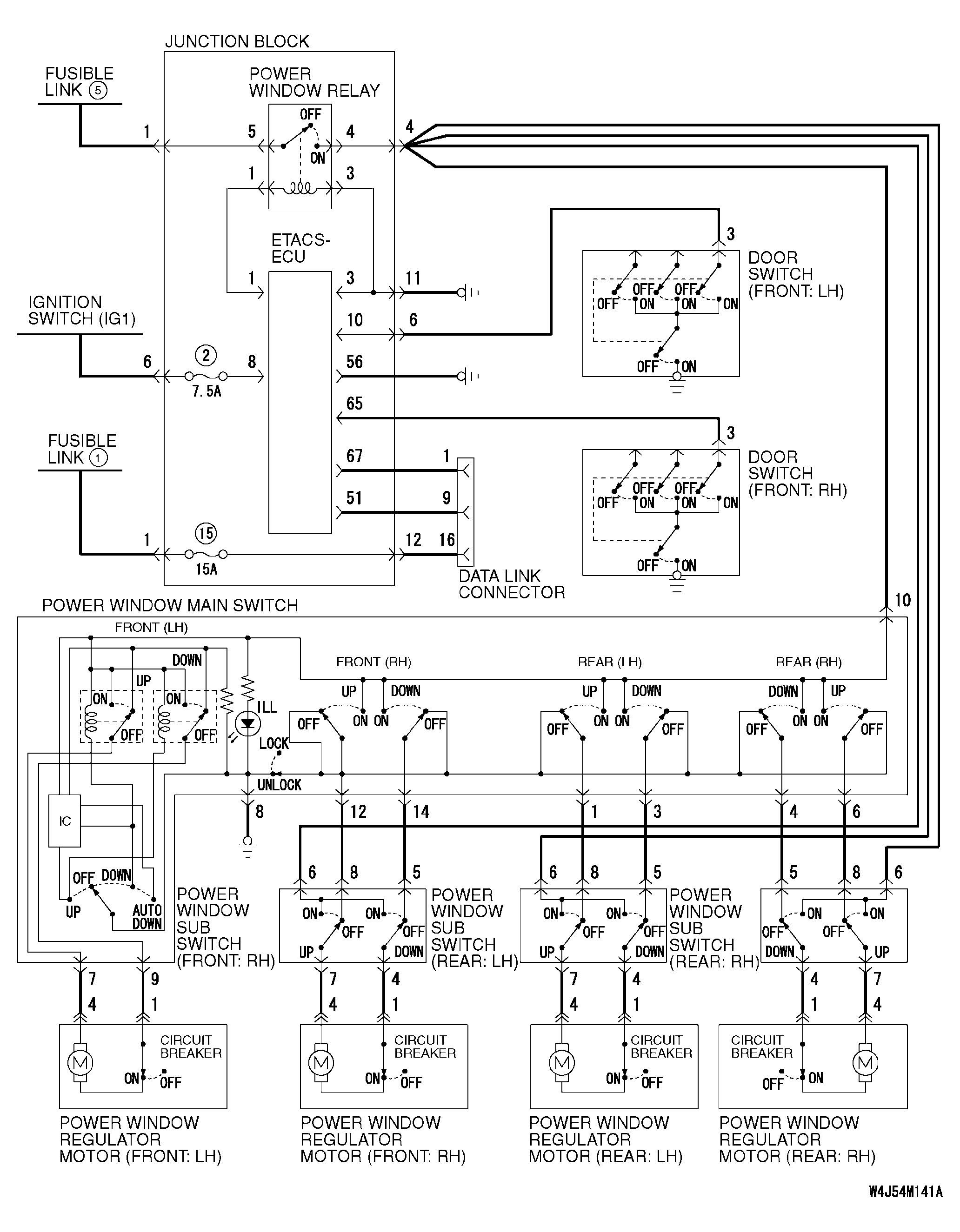

Fig 1: Power Windows - Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
