Inspection (Disassembly And Assembly): Stator

Check the continuity between coil leads.
If there is no continuity, replace the stator.

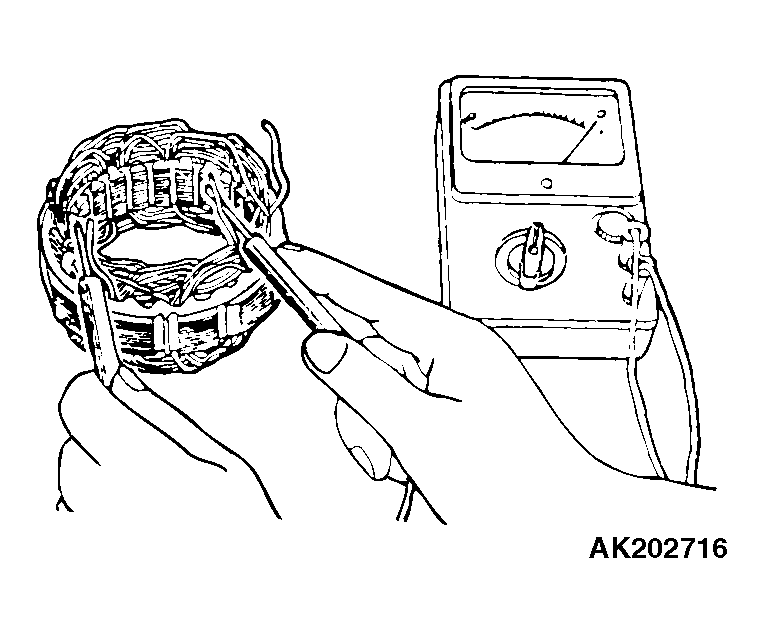

Fig 1: Checking Continuity Between Coil Leads
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the continuity between coil and core.
If there is no continuity, replace the stator.

Fig 2: Checking Continuity Between Coil And Core
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
