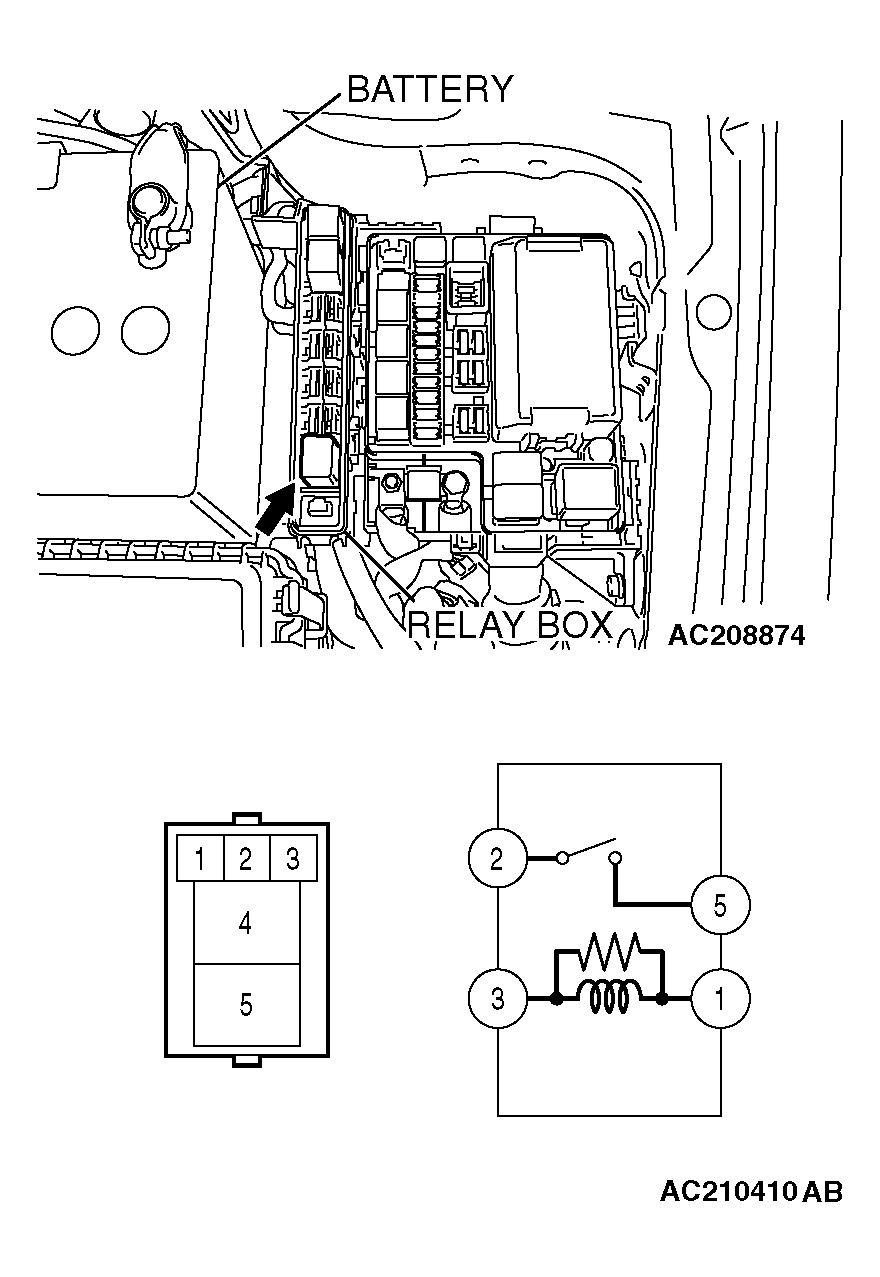

Starter Relay Check
STARTER RELAY REFERENCE CHART
| BATTERY VOLTAGE |
TERMINAL NUMBER TO BE CONNECTED TO TESTER |
CONTINUITY TEST RESULTS |
| Not applied |
2 - 5 |
Open circuit |
- Connect terminal 1 to the positive battery terminal
- Connect terminal 3 to the negative battery terminal
|
2 - 5 |
Less than 2 ohms |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
