Starting System - Lancer Evolution
›
Starter Motor Assembly
›
Removal And Installation
Removal And Installation

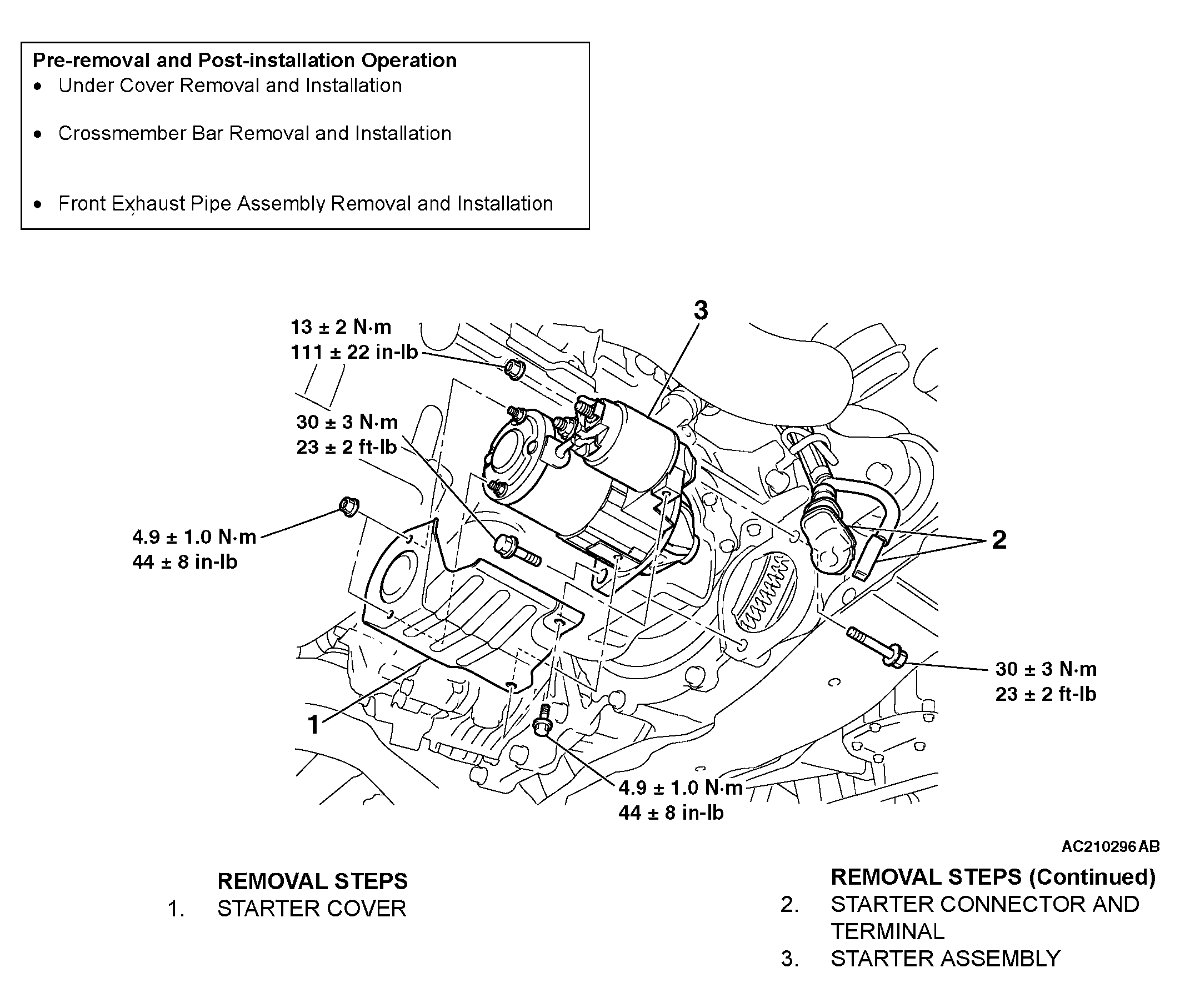

Fig 1: Removing/Installing Starter Motor Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
