Removal And Installation: Notes

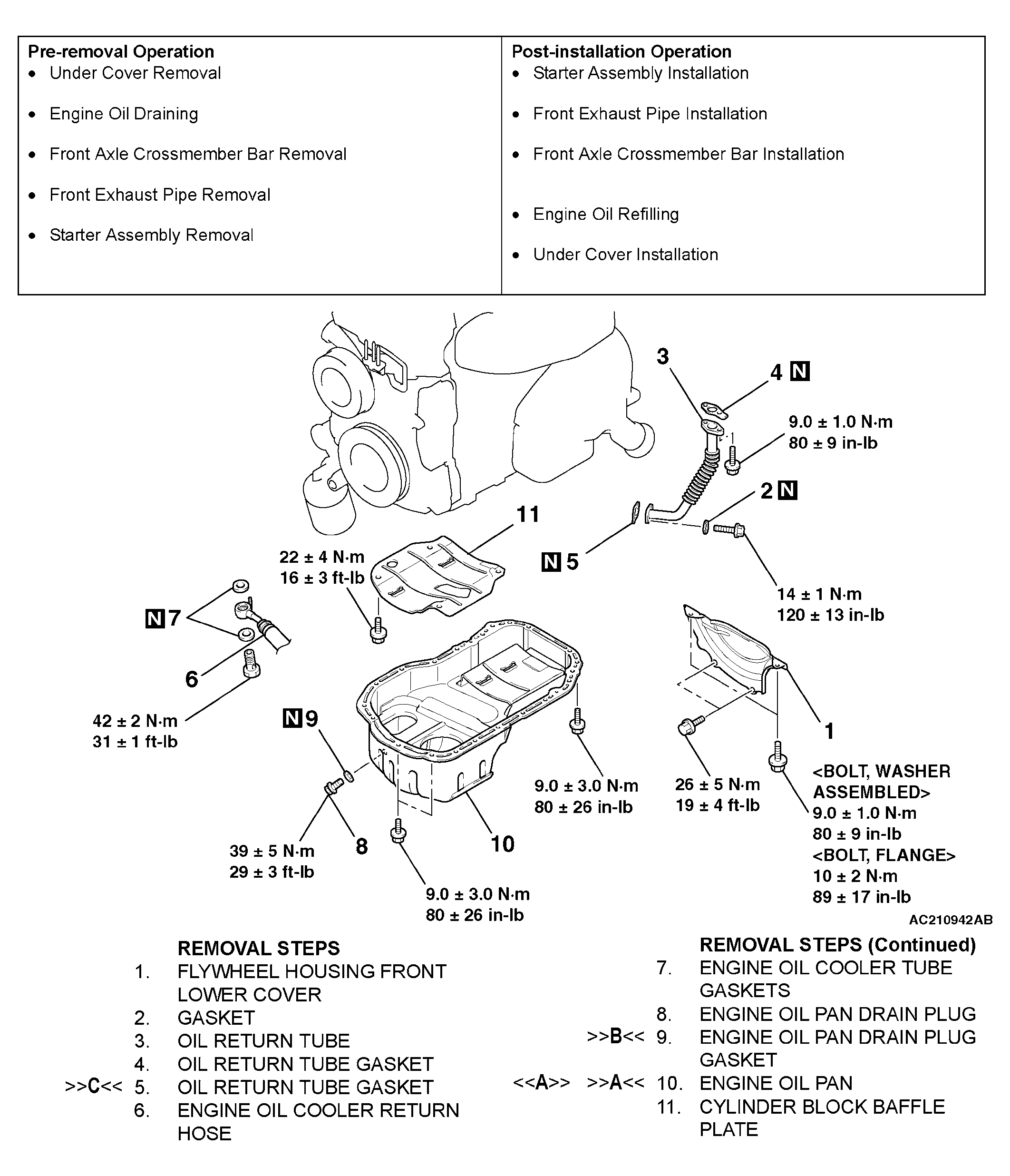

Fig 1: Removing And Installing Of Oil Pan

G04294020

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998727: Oil Pan FIPG cutter
