Removal And Installation: Notes

CAUTION: Do not remove the ignition coil boot from the ignition coil except the replacement. When removing the ignition coil boot, always replace it with the new one.

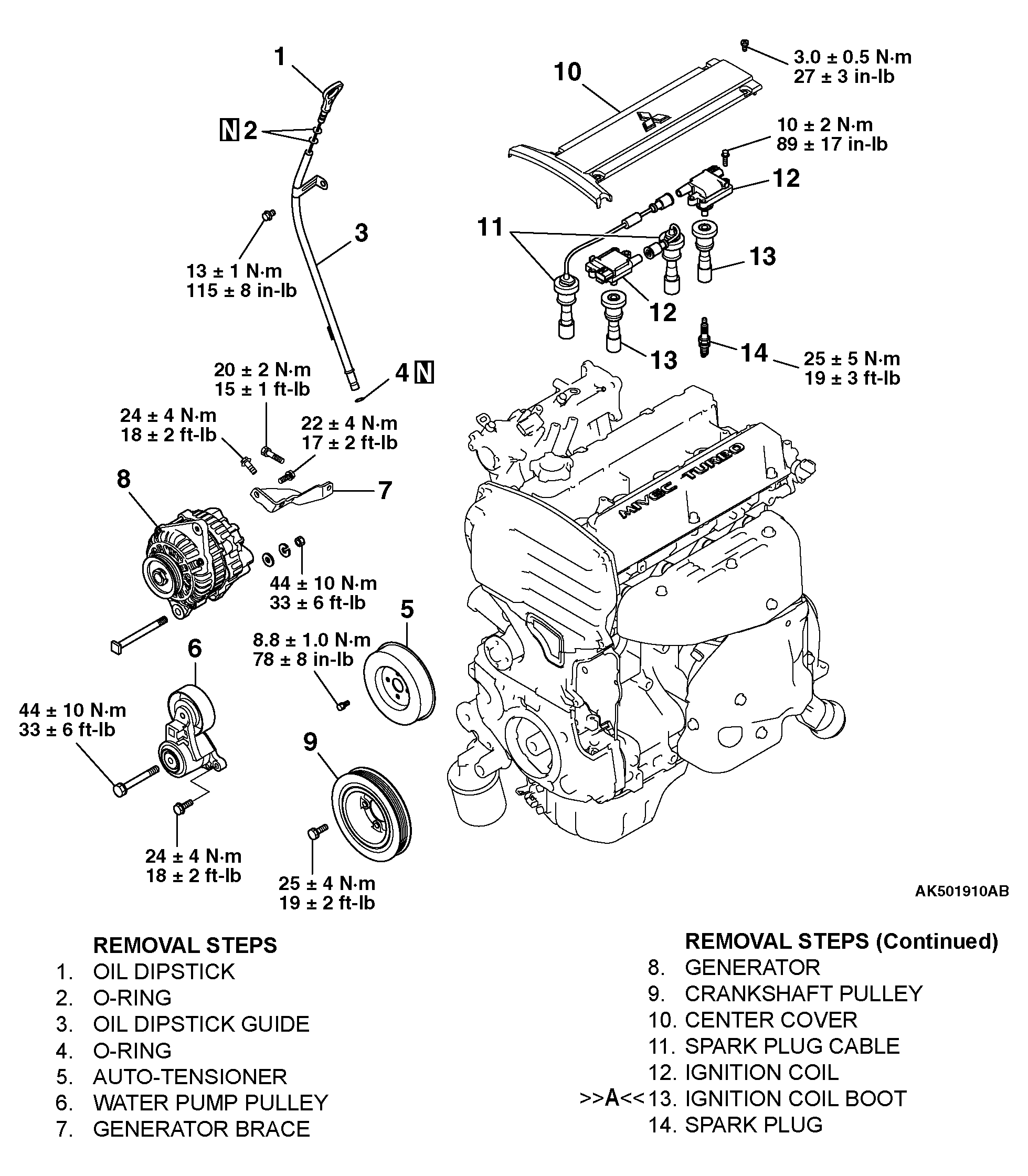

Fig 1: Removing/Installing Generator And Ignition System

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
