Removal And Installation: Notes

CAUTION: Never overhaul the V.V.T. sprocket.

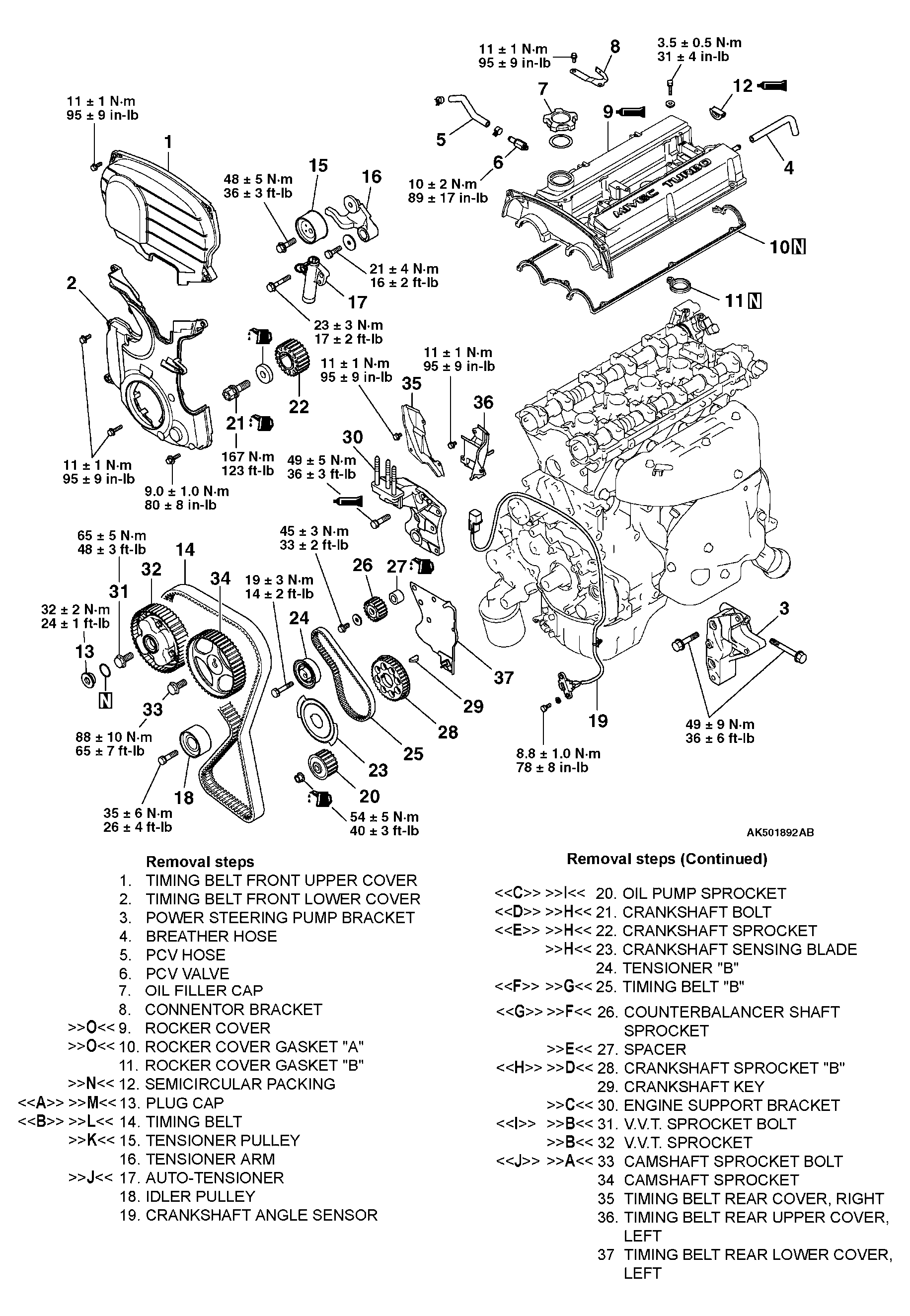

Fig 1: Removing/Installing Timing Belt Components

G04294107

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MD998738: Adjusting Screw
MD998767: Tensioner Pulley Wrench
MD998778: Crankshaft Sprocket Puller
MD998781: Flywheel Stopper
MD998785: Sprocket Stopper
