Special Tools

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04277367
 MB990767
End yoke holder		 MB990767-01 Fixing of the hub
G04277368
 MB991618
Hub bolt remover		 General service tool Removal of the hub bolt
G04277369
 MB991897
Ball joint remover		 MB991113-01, MB990635-01 or General service tool Knuckle and tie rod end ball joint disconnection
NOTE: Steering linkage puller(MB990635 or MB991113)is also used to disconnect knuckle and tie rod end ball joint.
G04277370
 MB990241
Axle shaft puller
A: MB990242 Puller shaft
B: MB990244 Puller bar		 MB990241-01 or General service tool Removal of the driveshaft
G04277371
 MB991354
Puller body		 General service tool
G04277372
 MB991056 or MB991355
Knuckle arm bridge		 MB991056-01
  • Removal of the hub
  • Removal of the wheel bearing
G04277373
 MB990685
Torque wrench		 General service tool Measurement of wheel bearing rotation starting torque
G04277374
 MB990326
Preload socket		 General service tool Measurement of wheel bearing rotation starting torque
G04277375
 A: MB991017
B: MB990998
C: MB991000
A, B: Front hub remover and installer
C: Spacer		 MB990998-01
  • Provisional holding of the wheel bearing
  • Measurement of wheel bearing rotation starting torque
  • Measurement of wheel bearing end play MB991000, which belongs to MB990998, should be used as a spacer.
G04277376
 MB991460 Plug General service tool Prevention of transmission fluid drain and of entry of foreign objects
G04277377
 MB991561
Boot band crimping tool		 MB991561 Resin boot band installation
G04277378
 MB990925
Bearing and oil seal installer set		 MB990925-01 or General service tool Removal of wheel bearing
G04277379
 MB990810
Side bearing puller		 General service tool Removal of the wheel bearing inner race (outside)
G04277380
 MB991248
Inner shaft remover		 MD998348-01 or General service tool Removal of the inner shaft
G04277381
 MB991172
Inner shaft installer base		 - Press-fitting of the inner shaft
G04277382
 MB990890
Rear suspension bush base		 MB990890-1
  • Wheel bearing installation < Vehicles without center bearing: OZ RALLY, Vehicles without center bearing >
  • Press-fitting of the dust seal outer, inner
G04277383
 MB990883
Rear suspension bush arbor		 MB990883-1
  • Wheel bearing installation < Vehicles without center bearing: OZ RALLY, Vehicles without center bearing >
G04277384
 MB991045
Bush remover and installer
A: MB991050 Base (B)		 - Wheel bearing installation < DE, ES >
SPECIAL TOOLS

TOOL TYPE TOOL NUMBER O D mm (in)

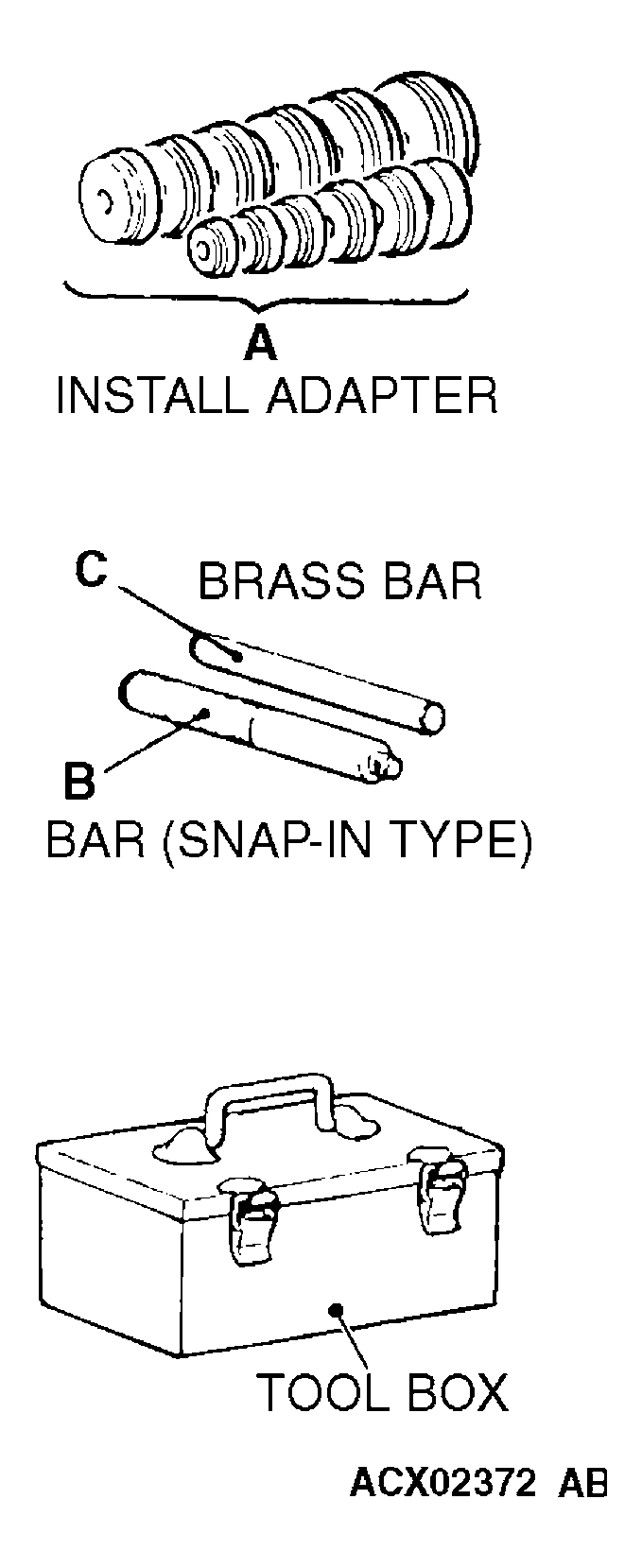

G04277385
 A MB990926 39.0 (1.54)
MB990927 45.0 (1.77)
MB990928 49.5 (1.95)
MB990929 51.0 (2.00)
MB990930 54.0 (2.13)
MB990931 57.0 (2.24)
MB990932 61.0 (2.40)
MB990933 63.5 (2.50)
MB990934 67.5 (2.66)
MB990935 71.5 (2.81)
MB990936 75.5 (2.97)
MB990937 79.0 (3.11)
B MB990938 -
C MB990939 -
