Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

WARNING:

Never attempt to disassemble or repair the seat slide sensor. If faulty, replace it.
Do not drop or subject the seat slide sensor to impact or vibration. Replace the seat slide sensor, if dents, cracking, deformation, or rust are present.

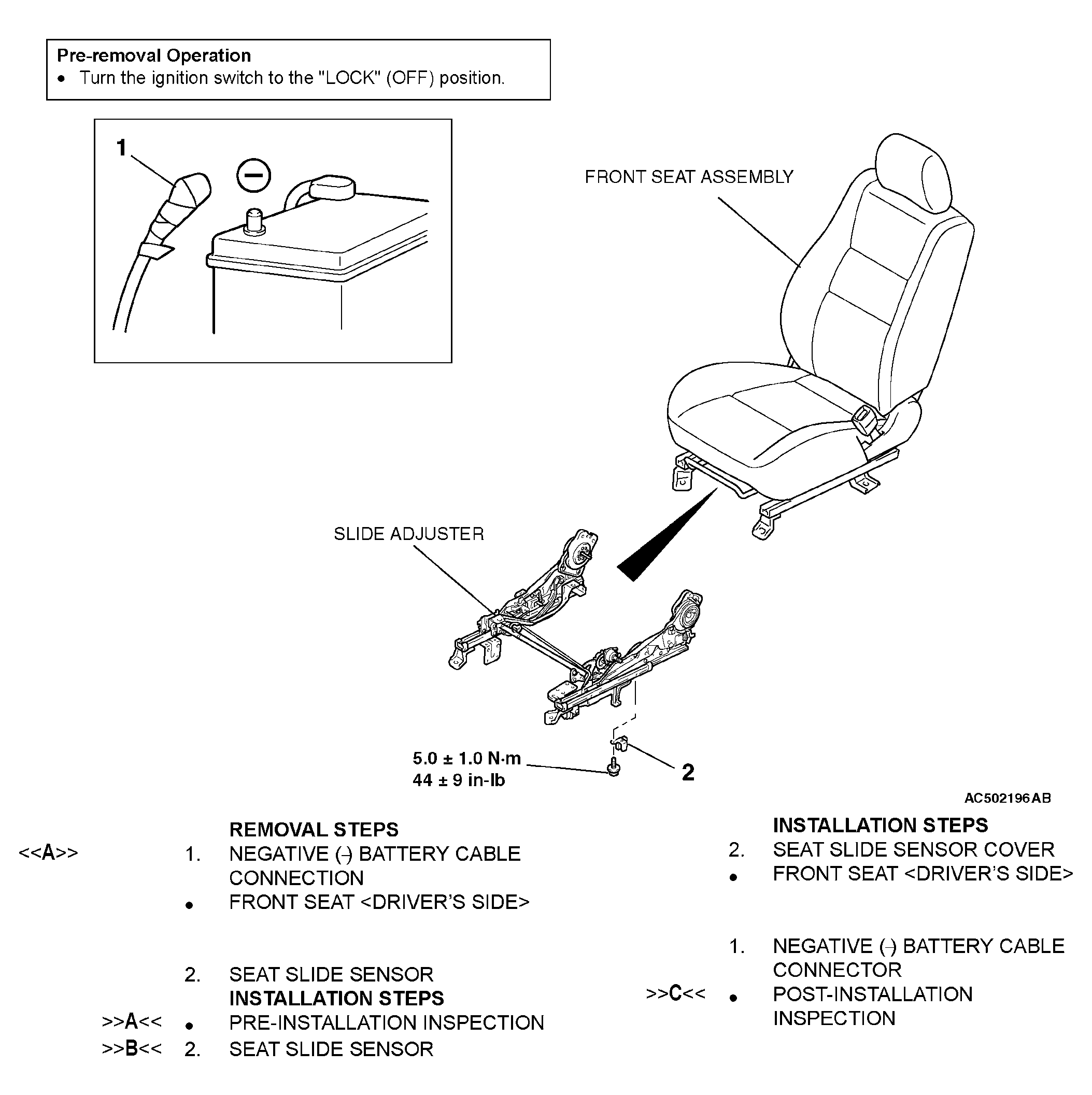

Fig 1: Removing And Installing Seat Slide Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
