Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

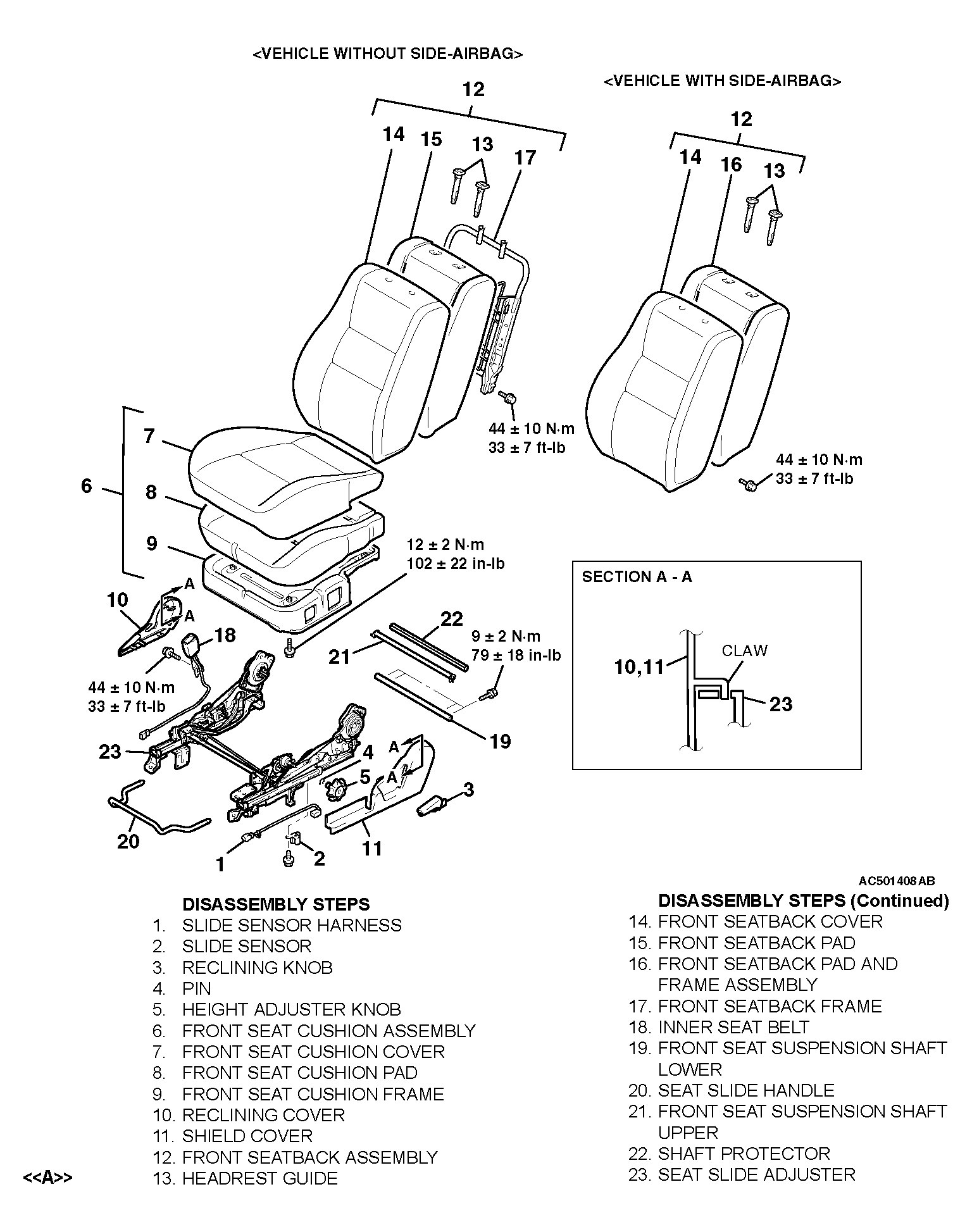

Fig 1: Disassembling View Of Front Seat Assembly
G04278117Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
