Mitsubishi
›
2006
›
Lancer Evolution
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior - Lancer Evolution
›
Trims
›
Removal And Installation
›
Notes
Removal And Installation: Notes

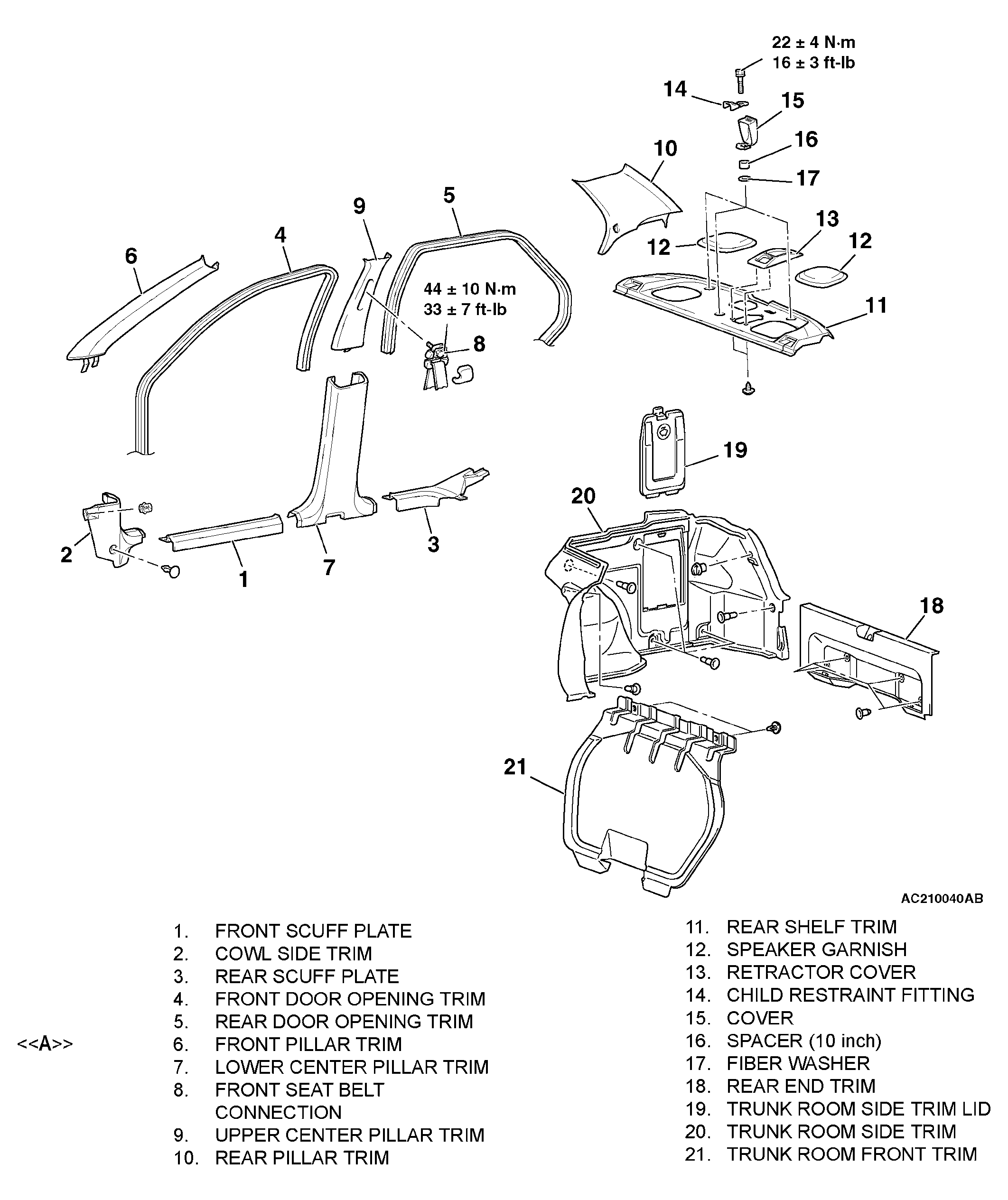

Fig 1: Exploded View Of Trims
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
