Supplemental Restraint System - Lancer Evolution: General Description: Schematic

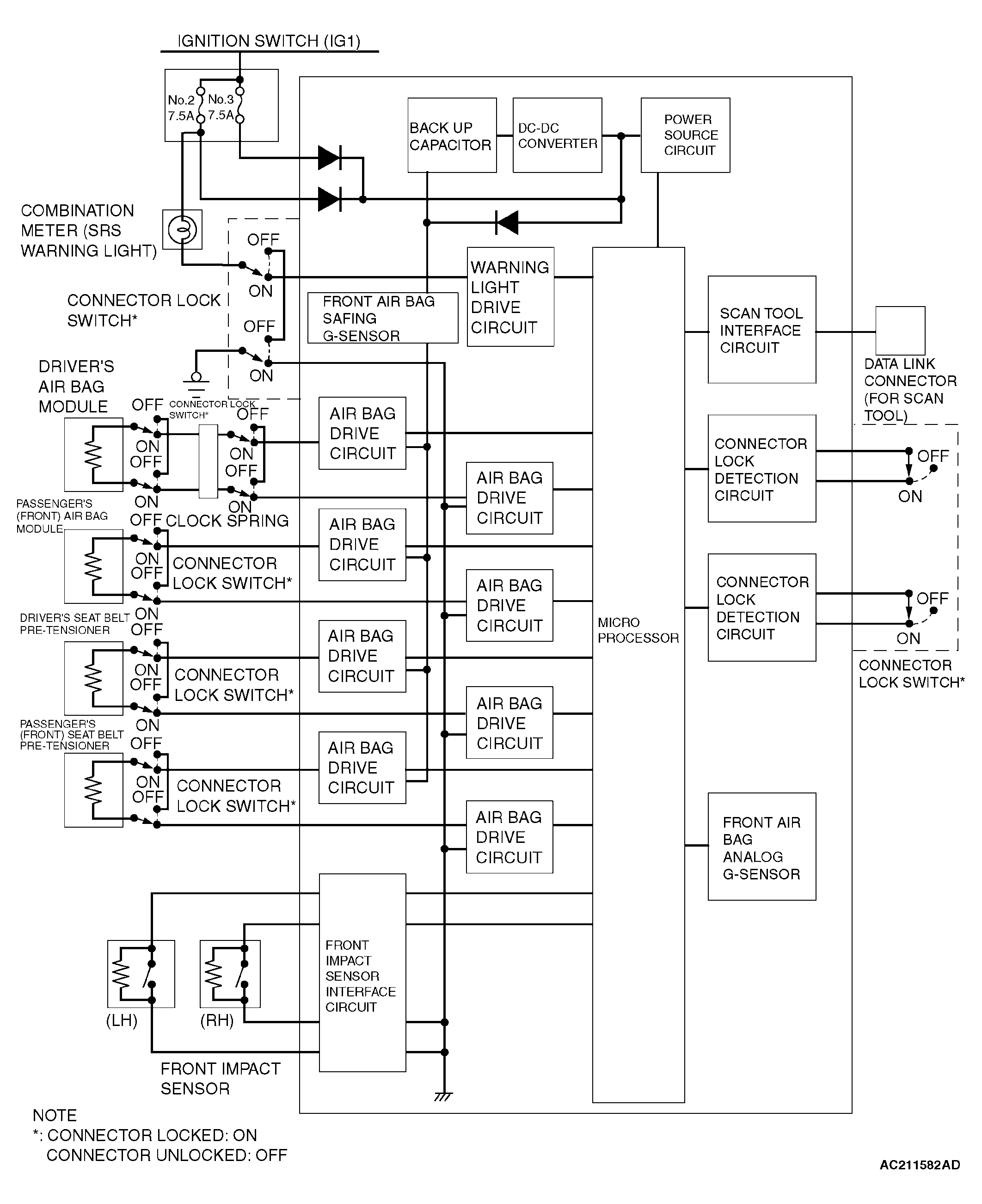

Fig 1: Schematic Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
