Disassembly And Assembly

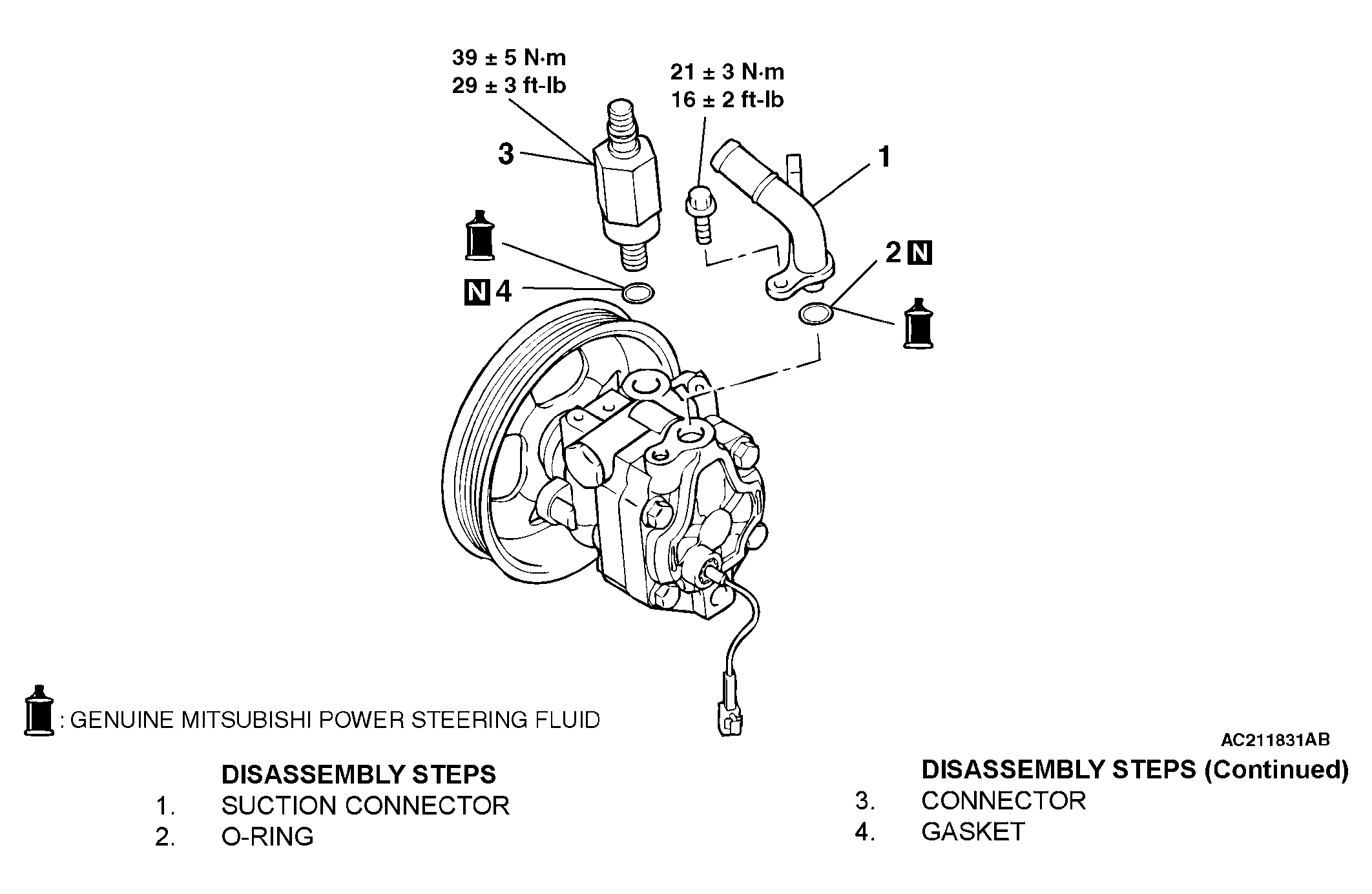

Fig 1: Dissembling And Assembling Power Steering Oil Pump Assembly
G04297645Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
