Home › Mitsubishi › 2006 › Lancer Evolution › Repair and Diagnosis › Steering › Power Steering - Lancer Evolution › Power Steering Oil Pump Assembly › Removal And Installation › Notes

Removal And Installation: Notes

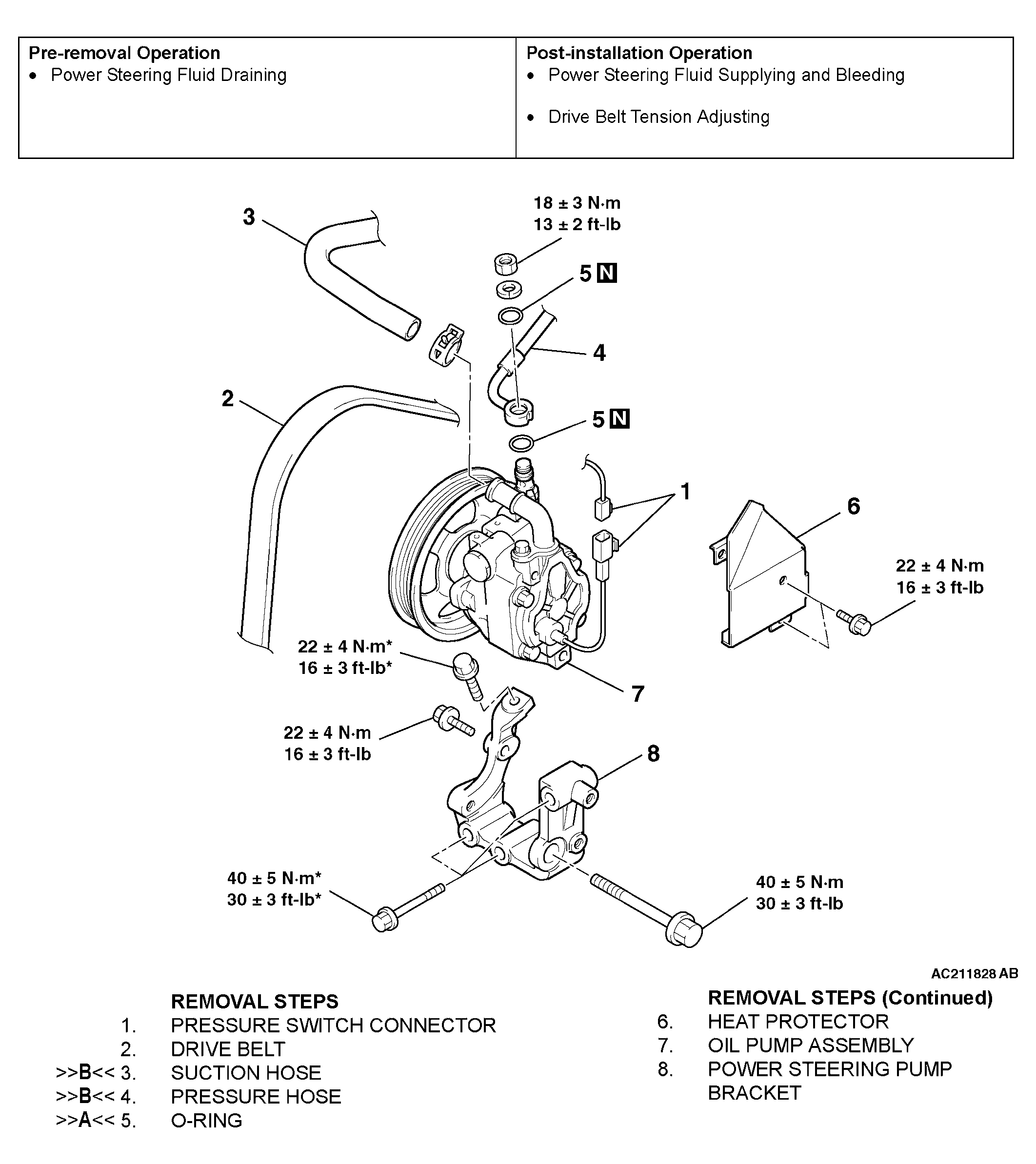

Fig 1: Removing/Installing Power Steering Oil Pump Assembly
G04297642Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
