Disassembly And Assembly: Notes

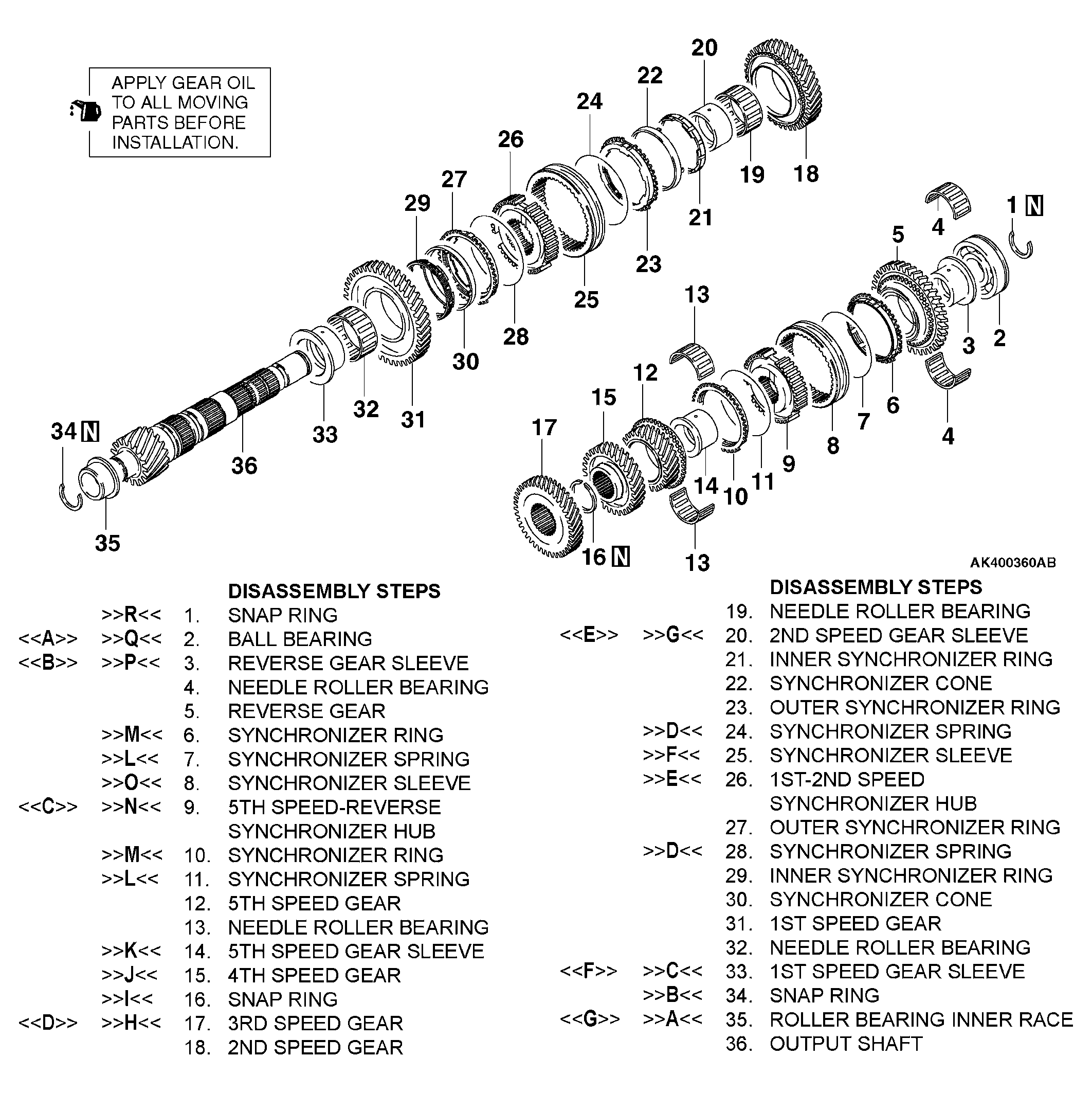

Fig 1: Disassembling/Assembling Of Output Shaft

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998801: Bearing Remover
• MD998812: Installer Cap
• MD998813: Installer-100
• MD998814: Installer-200
• MD998818: Installer Adapter (38)
• MD998819: Installer Adapter (40)
• MD998822: Installer Adapter (46)
• MD998825: Installer Adapter (52)
• MD998917: Bearing Remover
