>>F<< Sealing Cap Installation

Using special tools MB990927 and MB990938, press install the sealing cap onto the case.

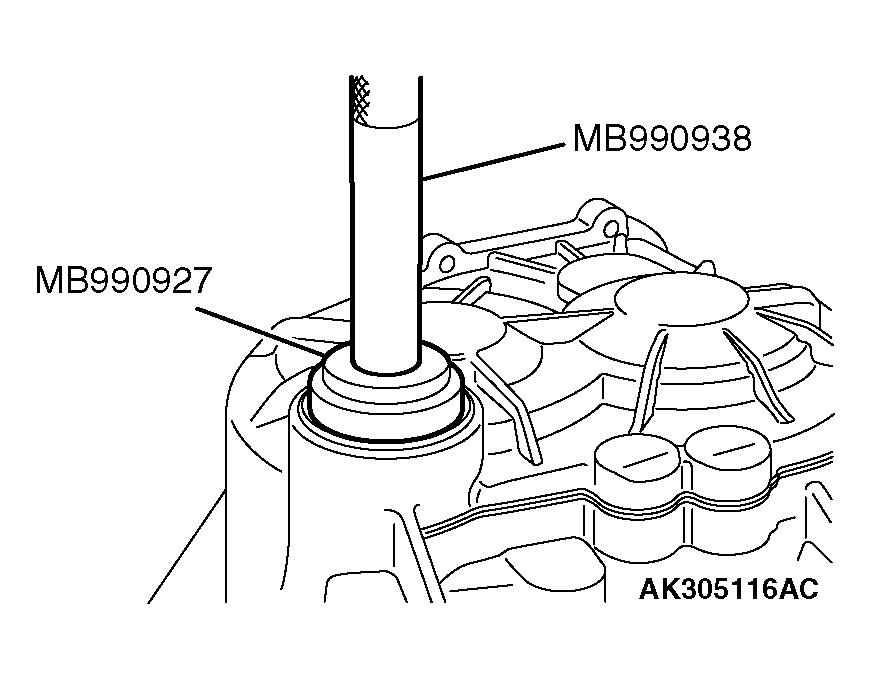

Fig 1: Pressing Install Sealing Cap Onto Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Evenly press the sealing cap so it is fully seated and not at an angle.

Fig 2: Pressing Sealing Cap
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
