Disassembly And Assembly: Notes

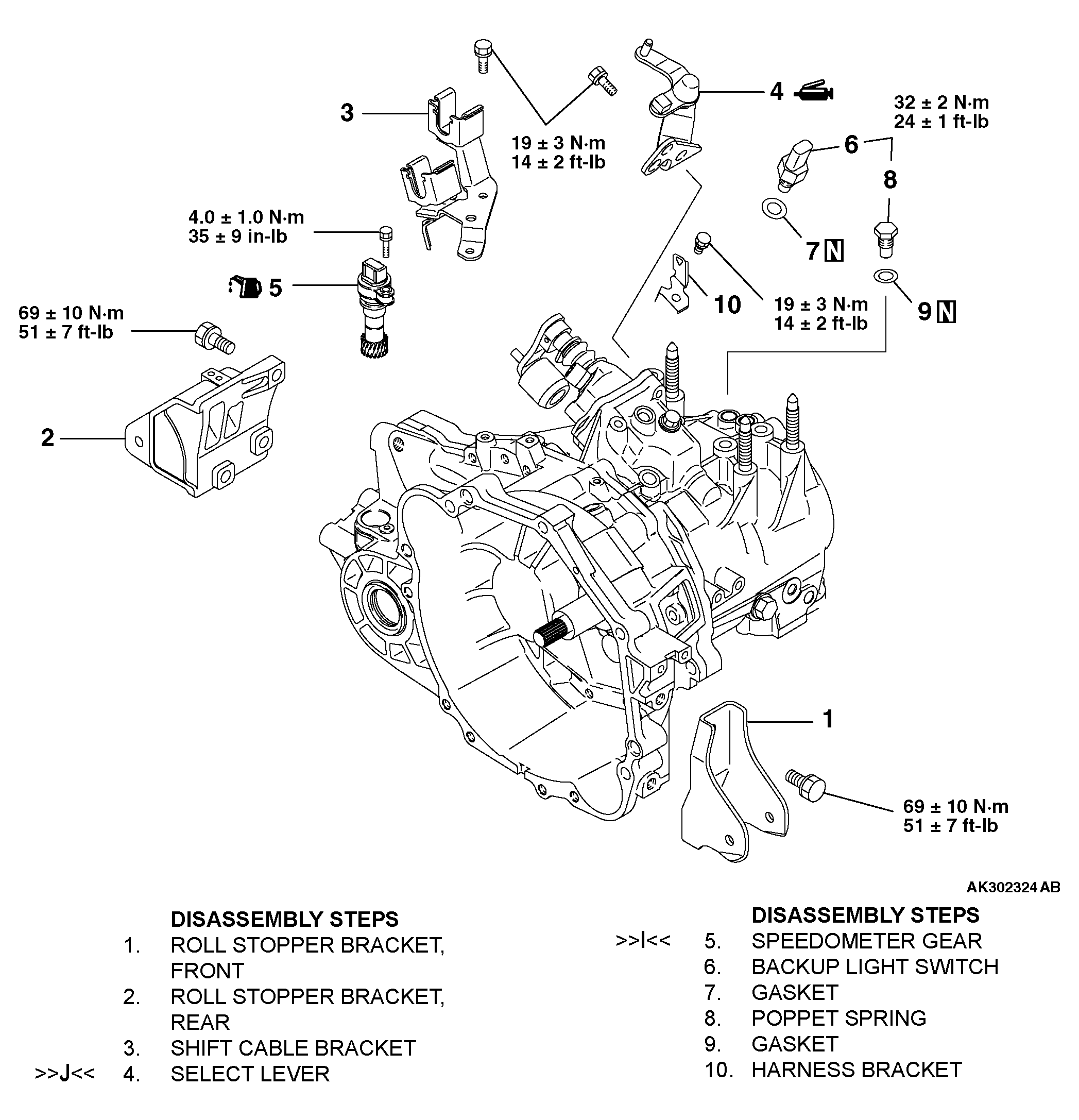

Fig 1: Disassembling/Assembling Of Transaxle (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

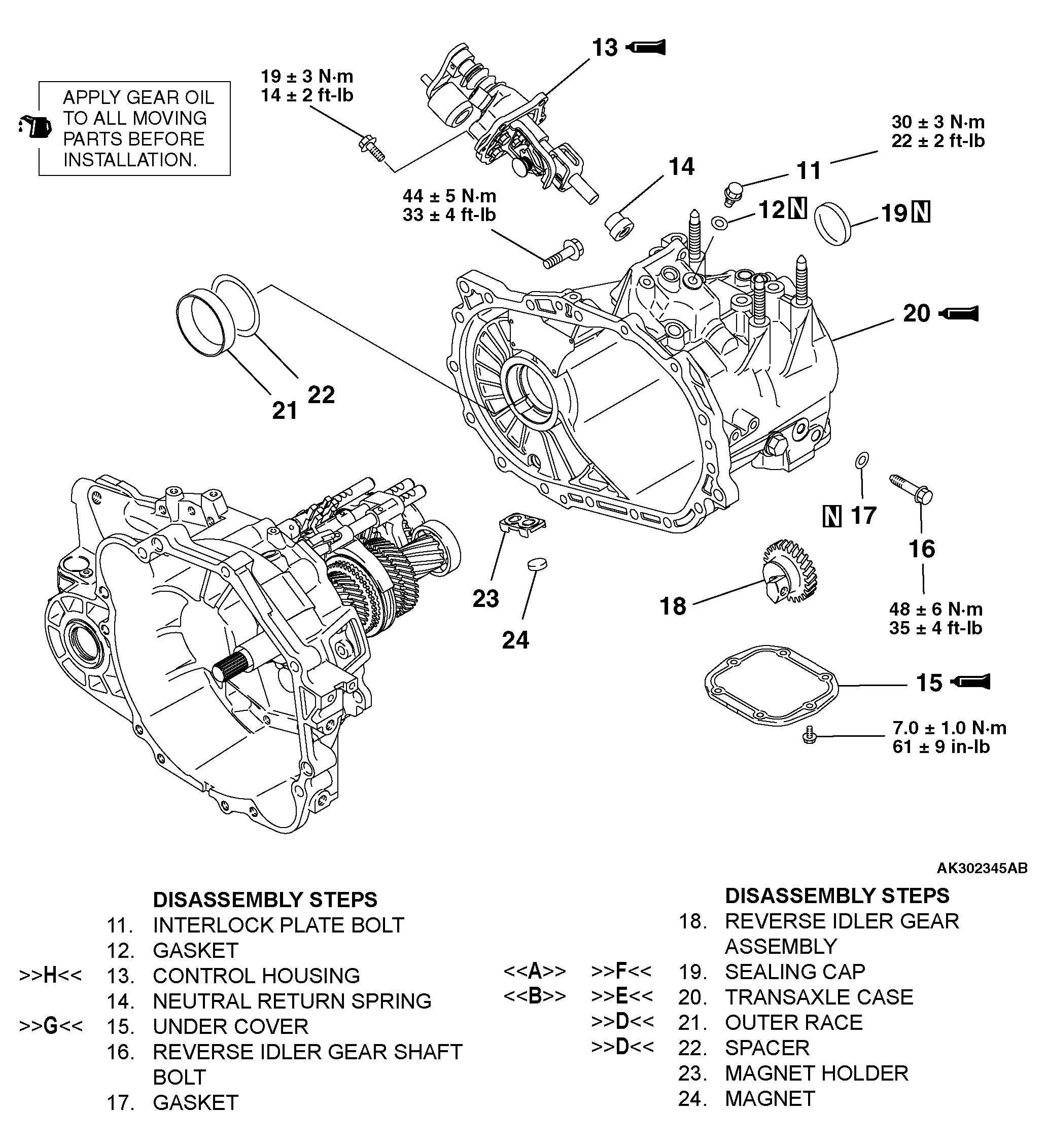

Fig 2: Disassembling/Assembling Of Transaxle (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

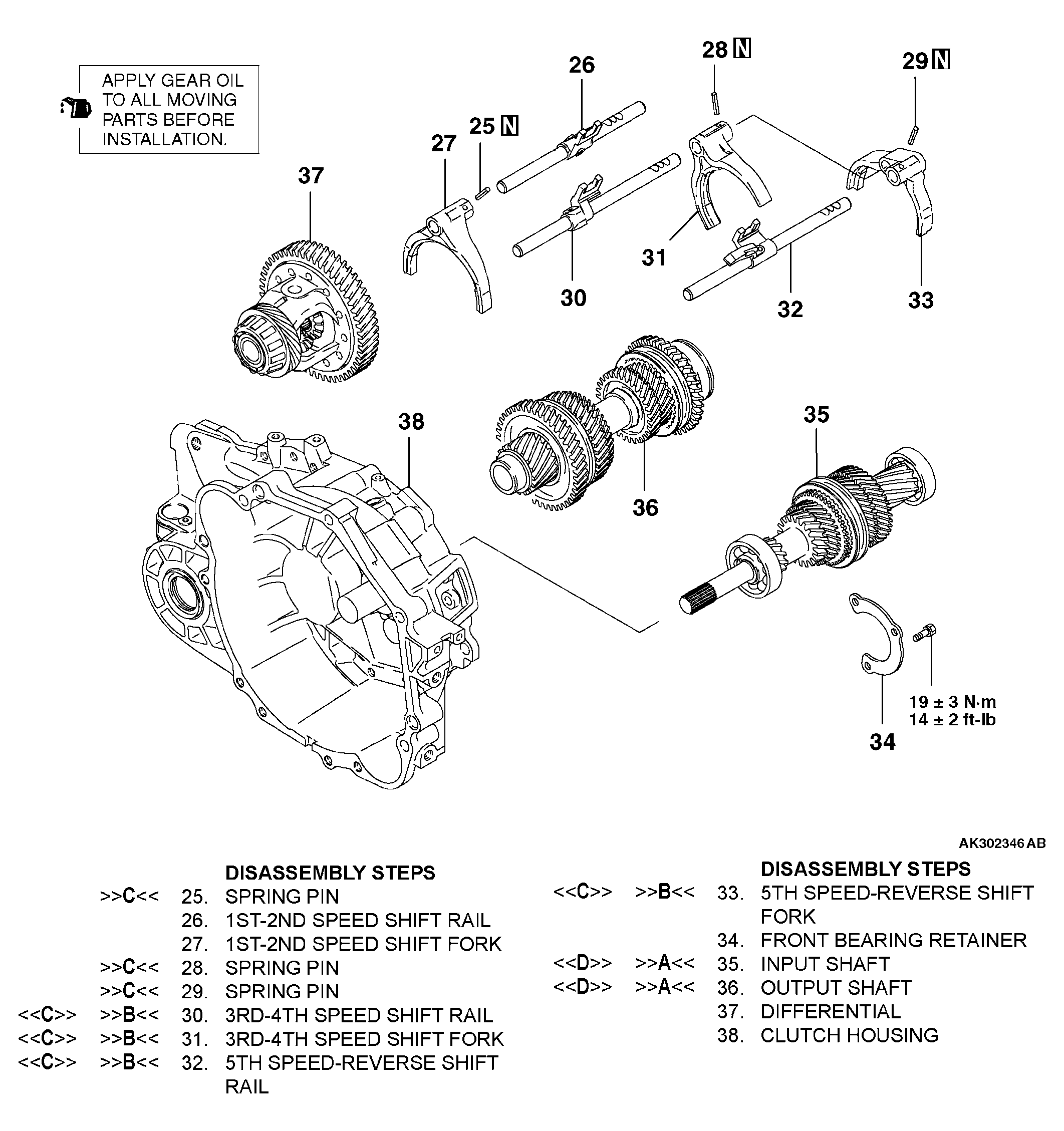

Fig 3: Disassembling/Assembling Of Transaxle (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
