Removal And Installation: Notes

NOTE: *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

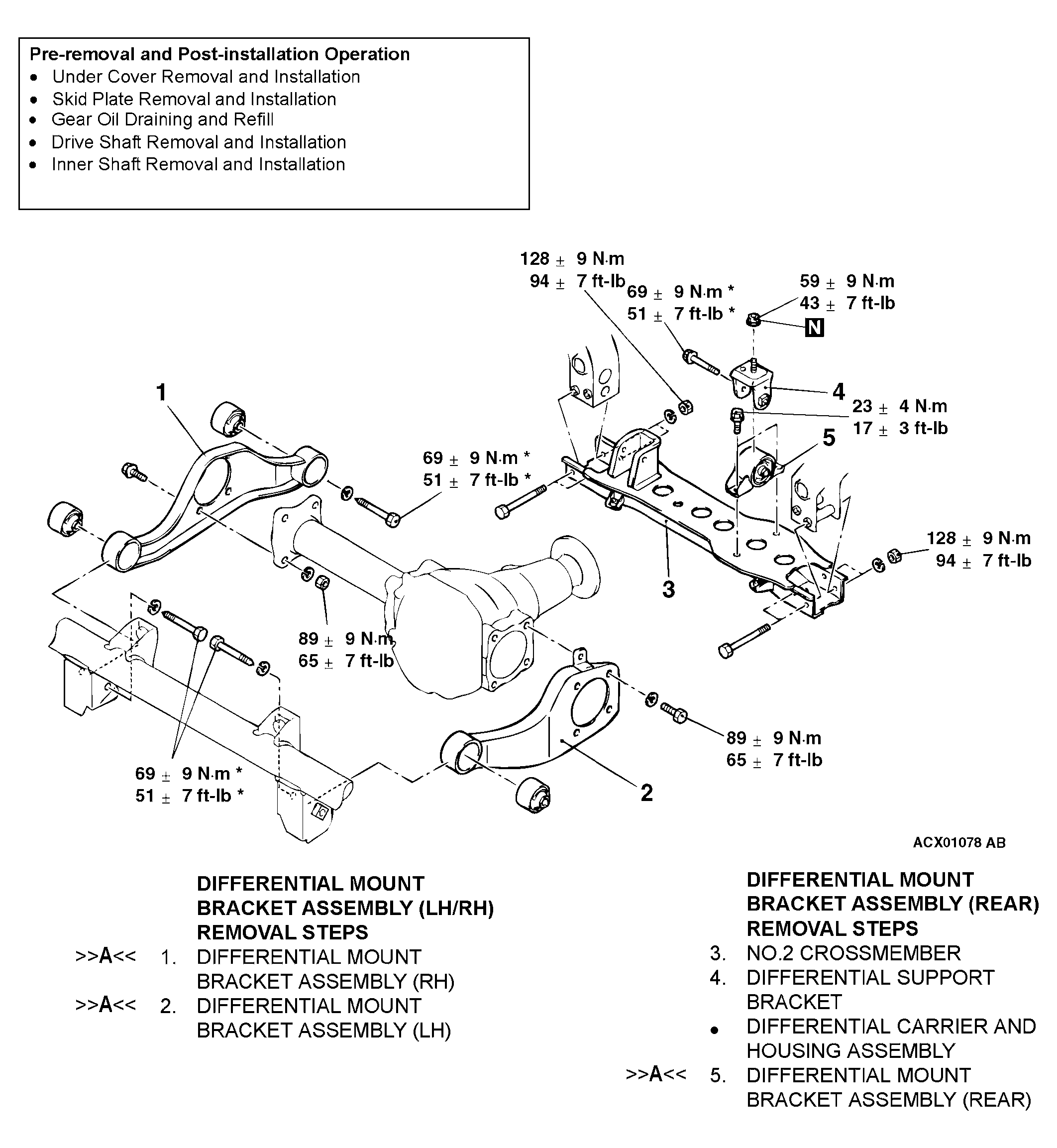

Fig 1: Removing/Installing Front Differential Mount

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
