Disassembly And Assembly: Notes

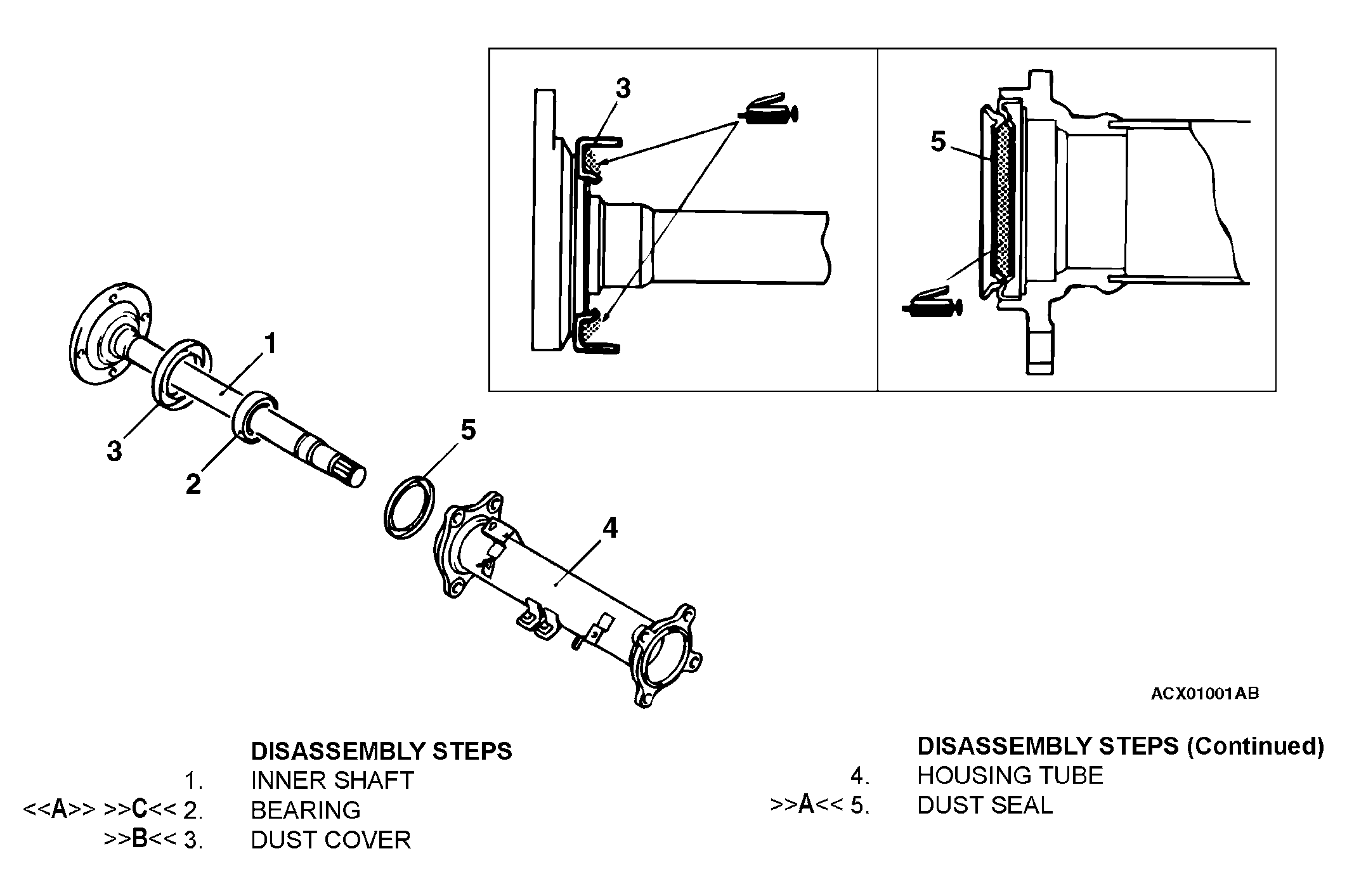

Fig 1: Disassembling/Assembling Inner Shaft Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990560: Bearing Remover
• MB990938: Bearing and Oil Seal Installer Set
• MB990955: Oil Seal Installer
