Communication Method

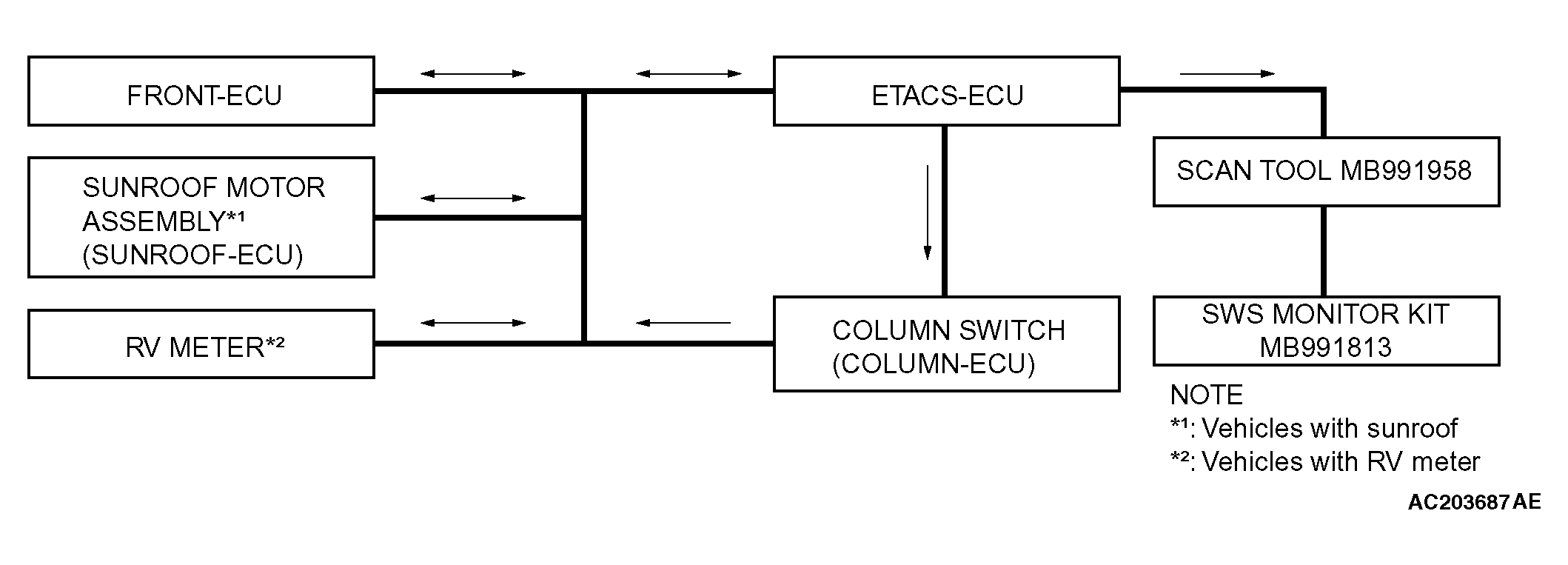

Fig 1: Communication Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

As shown in illustration, signal wires used exclusively for transmitting multiplex signal data connect the ETACS-ECU, front-ECU, column switch (incorporating the column-ECU), sunroof motor assembly (incorporating the sunroof-ECU), RV meter and these components communicate with each other.
