Disassembly And Assembly: Notes

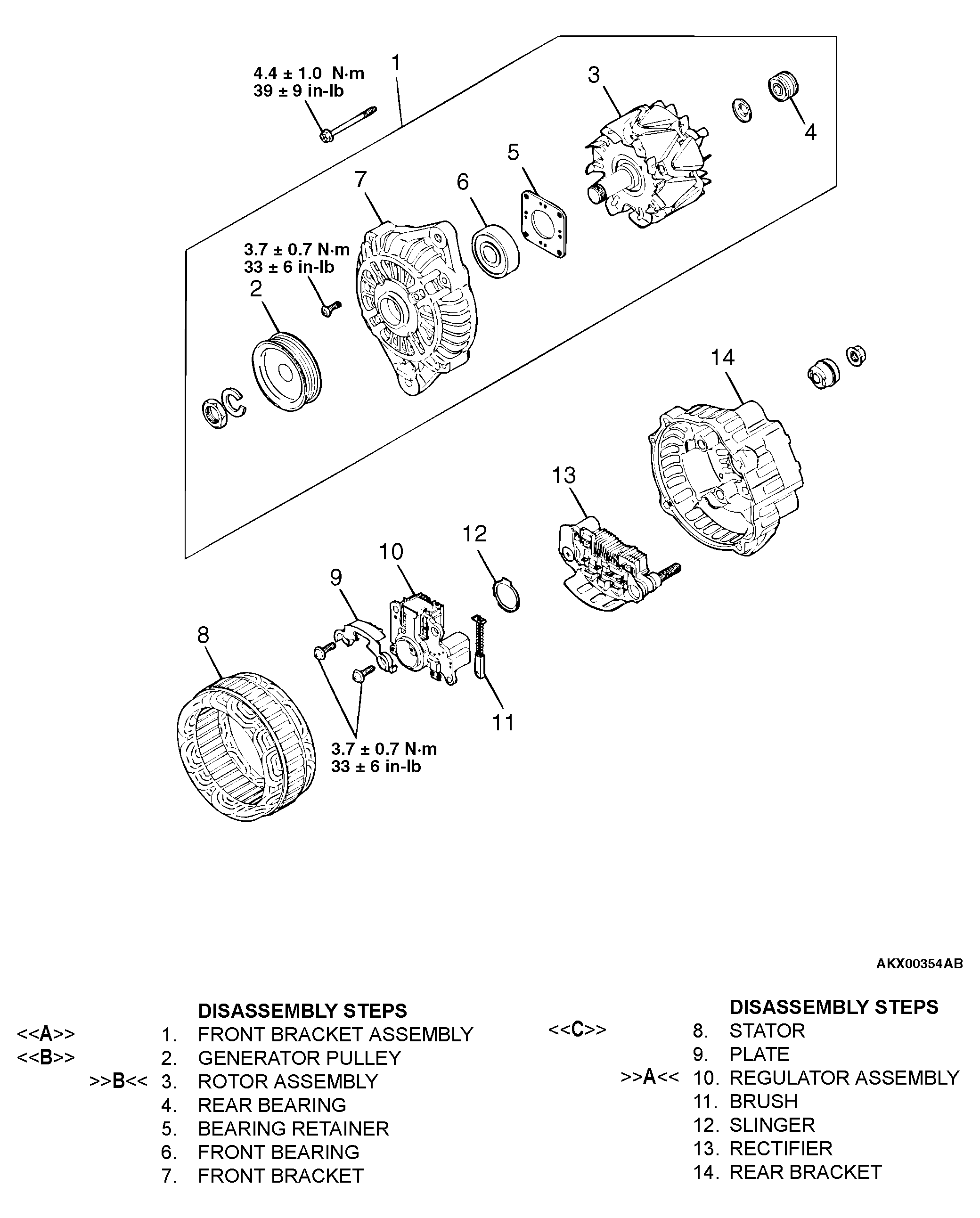

Fig 1: Disassembling/Assembling Generator Assembly With Torque Specifications
G04265067Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
