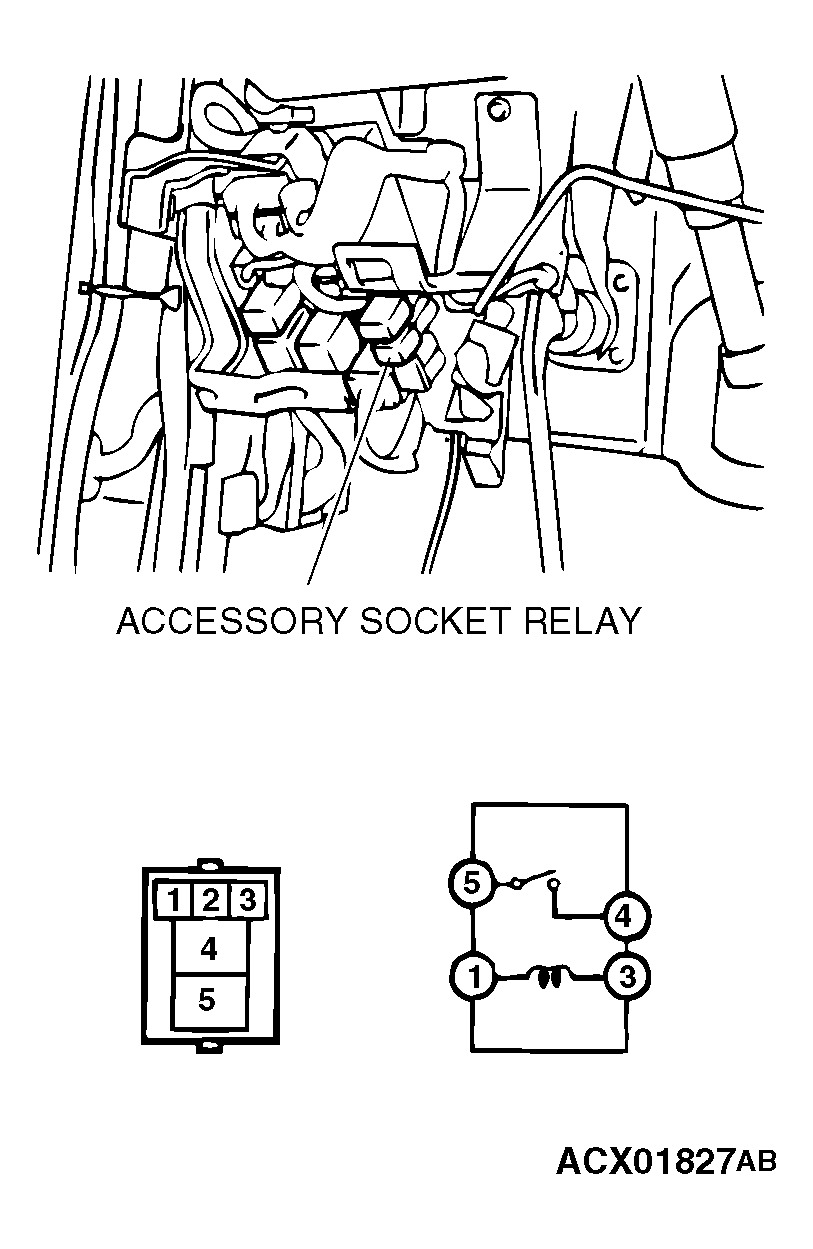

Accessory Socket Relay Continuity Check

ACCESSORY SOCKET RELAY CONTINUITY CHART

BATTERY VOLTAGE	TESTER CONDITION	SPECIFIED CONDITION
Not applied	4 - 5	Open circuit
Connect terminal 3 to the positive battery terminal Connect terminal 1 to the negative battery terminal	4 - 5	Less than 2 ohms

Fig 1: Disengaging Claw And Removing Accessory Socket

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
