Column Switch (Switch Body) Check

COLUMN SWITCH (SWITCH BODY) CHART

COLUMN SWITCH (BODY)	TESTER CONNECTION	SPECIFIED CONDITION
Lighting switch side - Wiper and washer switch side	3 - 3, 4 - 4, 5 - 5, 6 - 6, 7 - 7, 8 - 8, 9 - 9, 10 - 10, 11 - 11	Less than 2 ohms

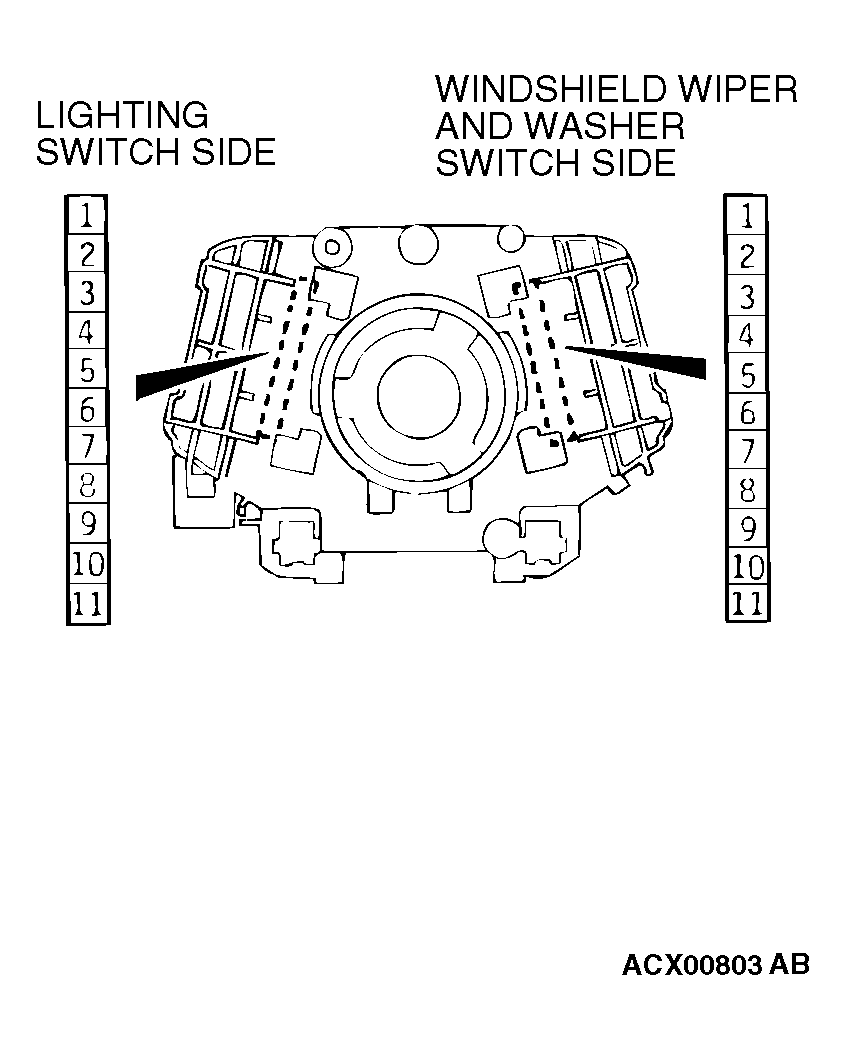

Fig 1: Identifying Windshield Wiper And Washer Switch Connector Terminal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
