Special Tools

WARNING: This page is about a different car, the 2005 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

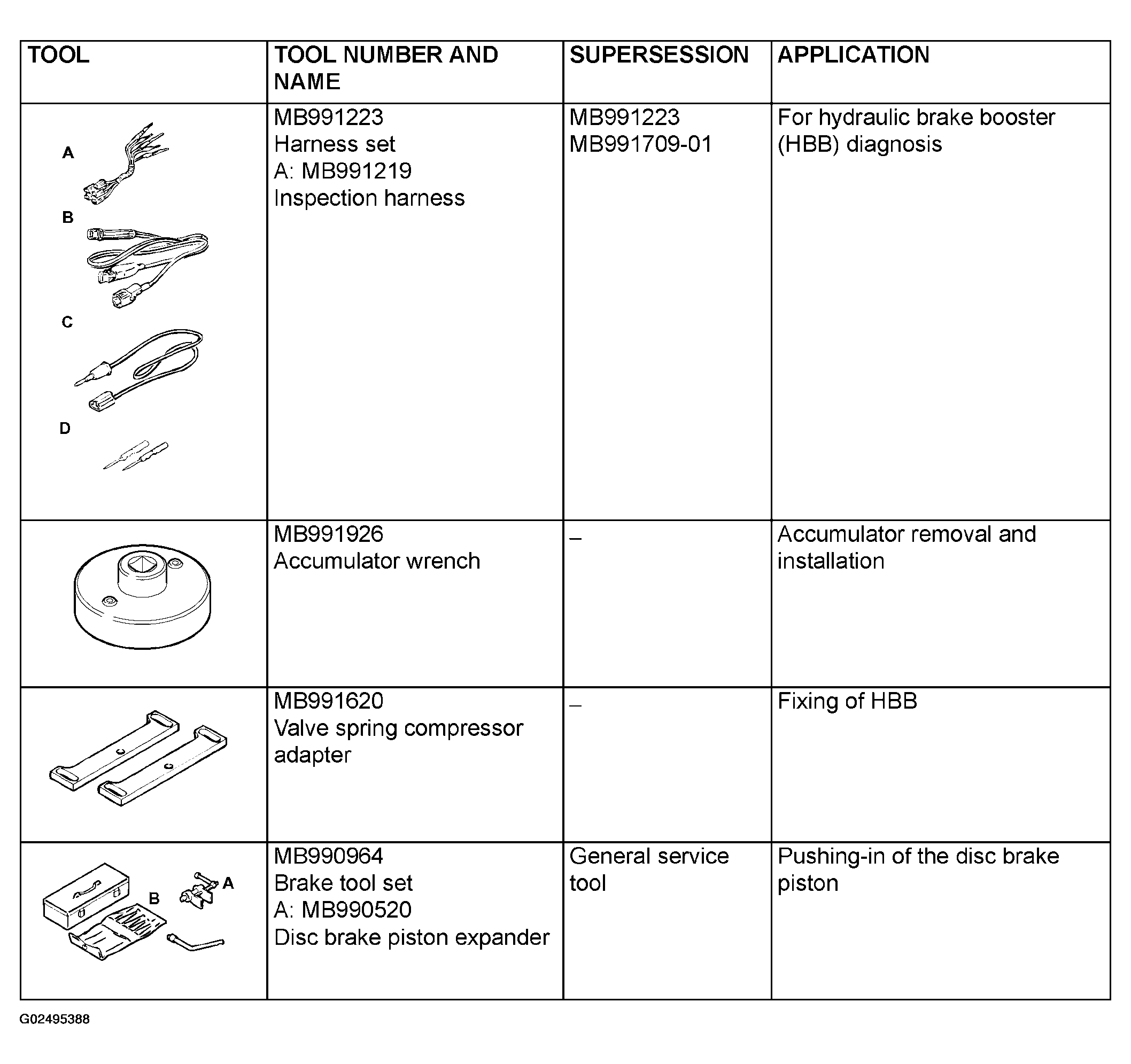

Fig 1: Special Tools Specification (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

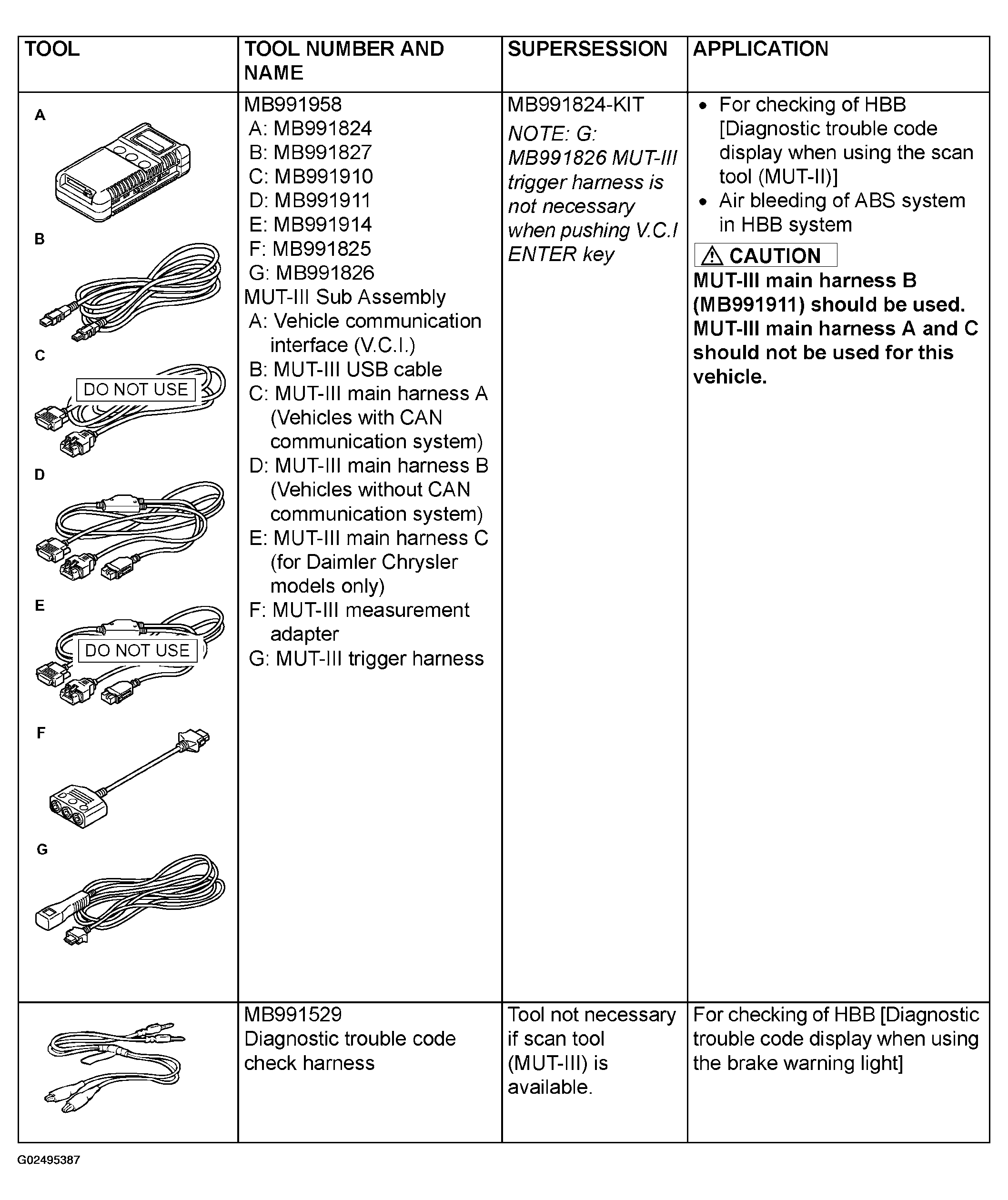

Fig 2: Special Tools Specification (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
