General Data And Specifications

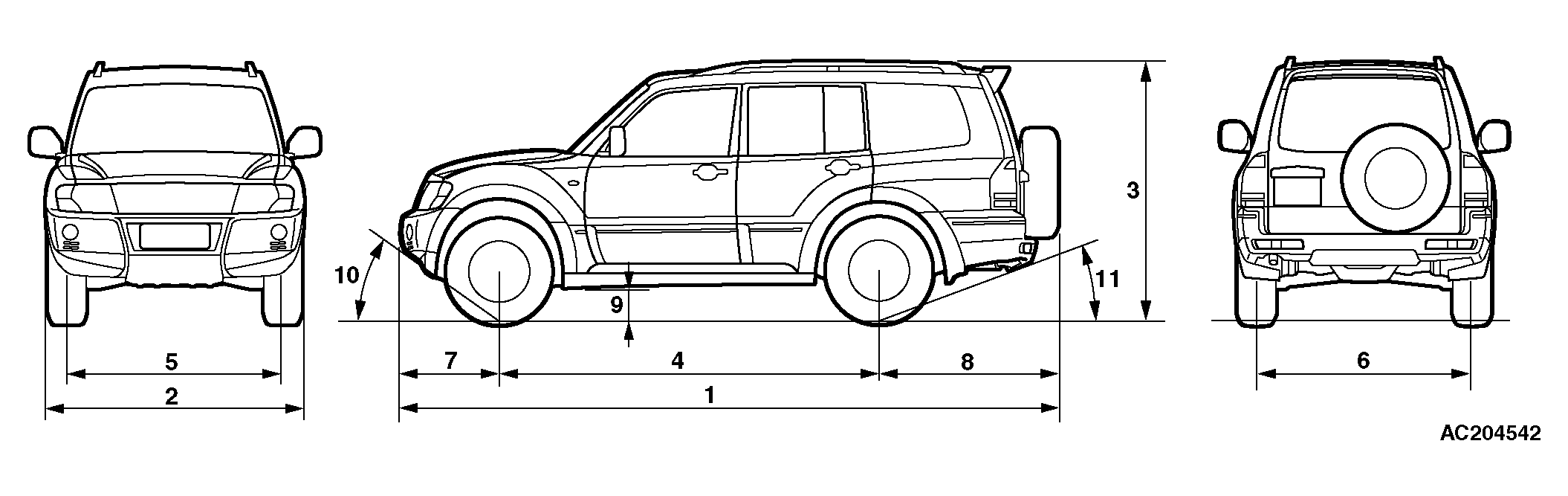

BODY AND CHASSIS DIMENSIONS SPECIFICATION
| ITEM | V77WLYHVL2M | V77WLYXVL2M/3M | |
|---|---|---|---|
| Vehicle dimensions | |||
| Overall length mm (in) | 1 | 4,830 (190.2) | 4,830 (190.2) |
| Overall width mm (in) | 2 | 1,895 (74.6) | 1,895 (74.6) |
| Overall height (unladen) mm (in) | 3 | 1,885 (74.2) | 1,885 (74.2) |
| Wheelbase mm (in) | 4 | 2,780 (109.4) | 2,780 (109.4) |
| Tread - front mm (in) | 5 | 1,560 (61.4) | 1,560 (61.4) |
| Tread - rear mm (in) | 6 | 1,560 (61.4) | 1,560 (61.4) |
| Overhang - front mm (in) | 7 | 710 (28.0) | 710 (28.0) |
| Overhang - rear mm (in) | 8 | 1,305 (51.4) | 1,305 (51.4) |
| Minimum running ground clearance mm (in) | 9 | 235 (9.3) | 235 (9.3) |
| Angle of approach degrees | 10 | 39° | 39° |
| Angle of departure degrees | 11 | 24° | 24° |
| Vehicle weight kg (lb) | |||
| Curb weight | 2,135 (4,707) | 2,180 (4,806)< 2M >, 2,185(4,817)< 3M > | |
| Gross vehicle weight rating | 2,720 (5,997) | 2,720 (5,997) | |
| Gross axle weight rating - front | 1,200 (2,646) | 1,200 (2,646) | |
| Gross axle weight rating - rear | 1,650 (3,638) | 1,650 (3,638) | |
| Seating capacity | 7 | 7 | |
| Engine | |||
| Model No. | 6G75 | 6G75 | |
| Piston displacement | 3.8L | 3.8L | |
| Transmission | |||
| Model No. | V5A51 | V5A51 | |
| Type | 5-speed automatic | 5-speed automatic | |
| Fuel system | |||
| Fuel supply system | Electronic-controlled multiport fuel injection | ||
