Vehicle Information Code Plate: Notes

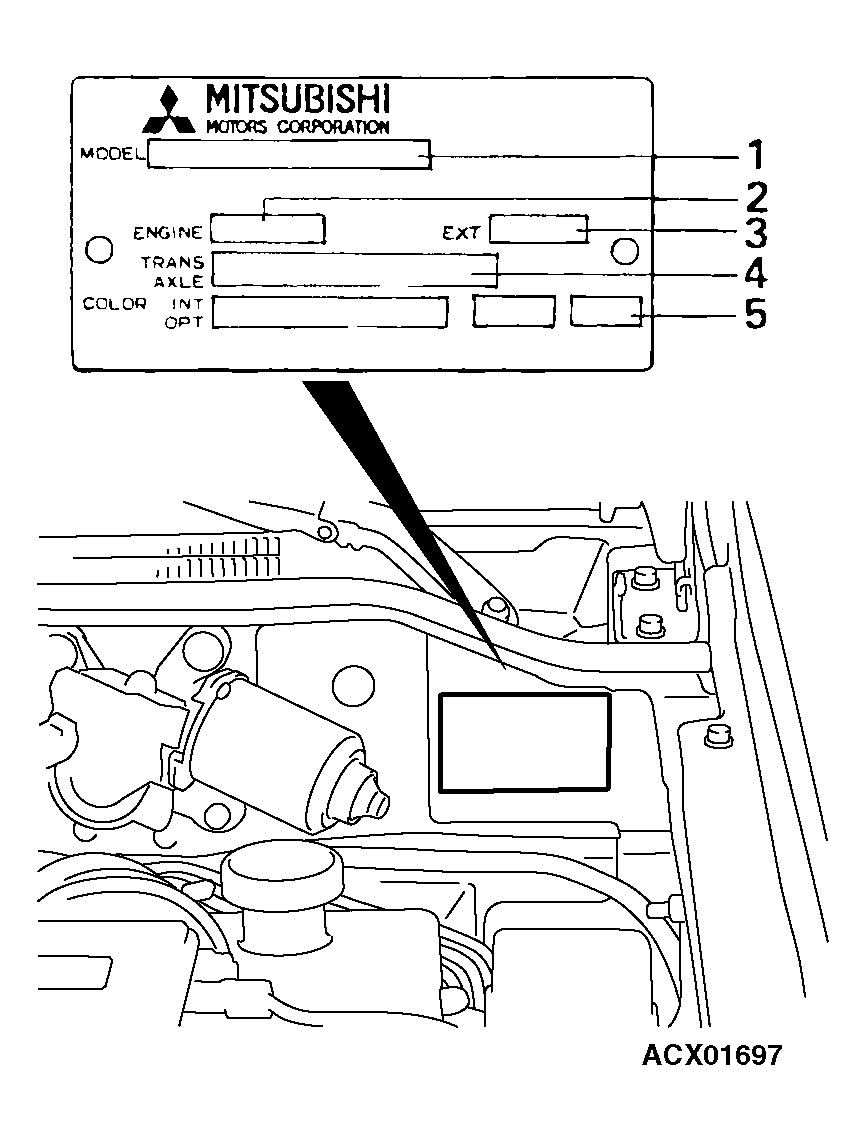

The vehicle information code plate is riveted onto the cowl top outer panel in the engine compartment.
The plate shows model code, engine model, transmission model and body color code.
VEHICLE INFORMATION CODE SPECIFICATION
| NO. | ITEM | CONTENT | |
|---|---|---|---|
| 1 | MODEL | V77WLYXV L2M | V77W; Vehicle model |
| LYXVL2M; Model series | |||
| 2 | ENGINE | 6G75 | Engine model |
| 3 | EXT | A69D | Exterior code |
| 4 | TRANS AXLE | V5A51 4300 | V5A51; Transmission model |
| 4300; Rear differential reduction | |||
| 5 | COLOR, INT OPT | A69 21T Z08 | A69; Body color code |
| 21T; Interior code | |||
| Z08; Equipment code | |||
For monotone color vehicles, the body color code shall be indicated. For two-tone vehicles, each color code only shall be indicated in series.
