Home › Mitsubishi › 2006 › Montero › Repair and Diagnosis › Restraints › Passive Restraints › Interior › Third Seat Assembly › Disassembly And Assembly › Notes

Disassembly And Assembly: Notes

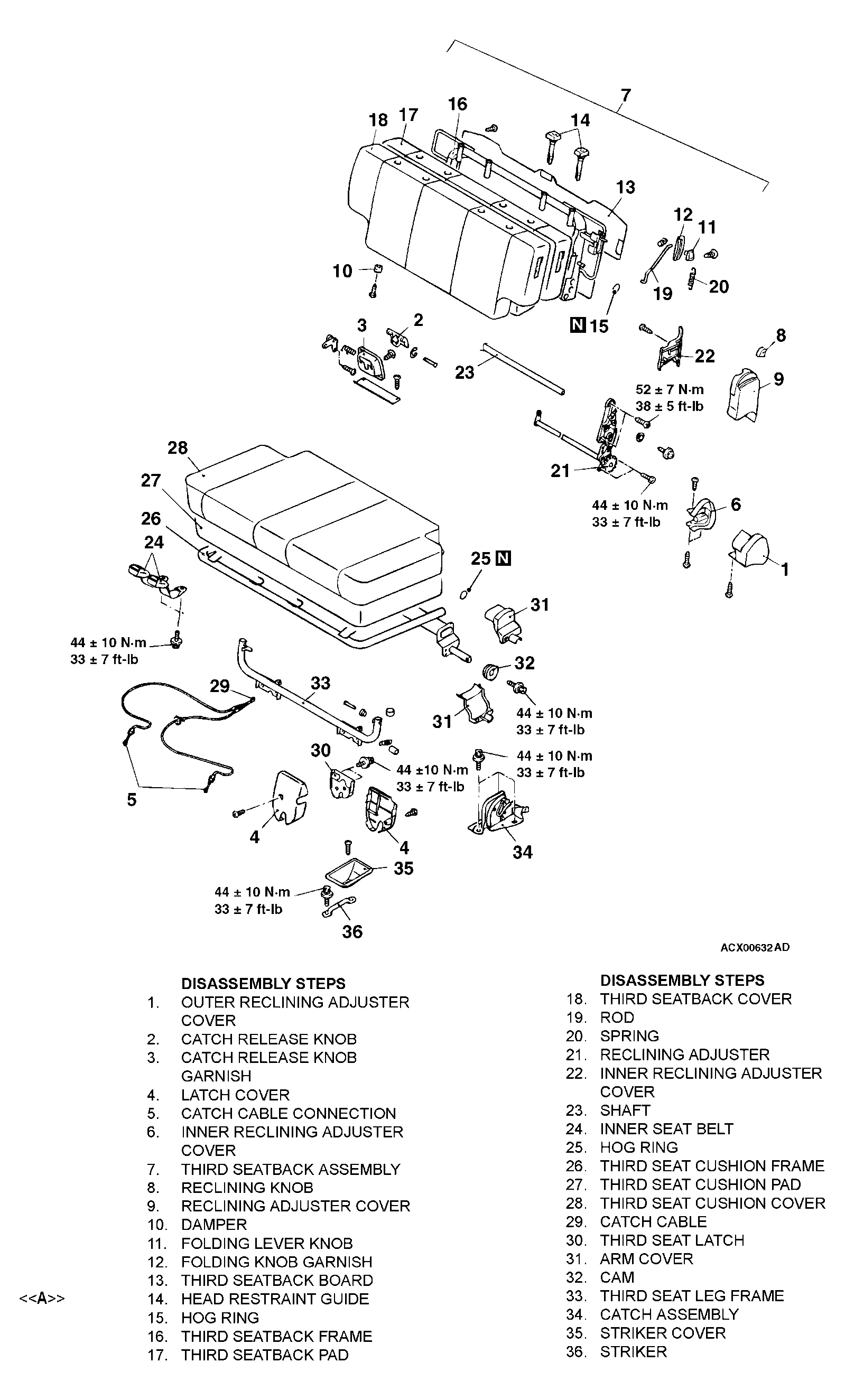

Fig 1: Exploded View Of Third Seat Assembly
G04267869Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
