Removal And Installation: Notes

WARNING:
  • Never repair or disassemble the front impact sensor. If faulty, replace it.
  • Handle the front impact sensors very carefully, taking care not to drop them or otherwise a new one is required.
  • Replace the sensors with new ones after the air bag has deployed.

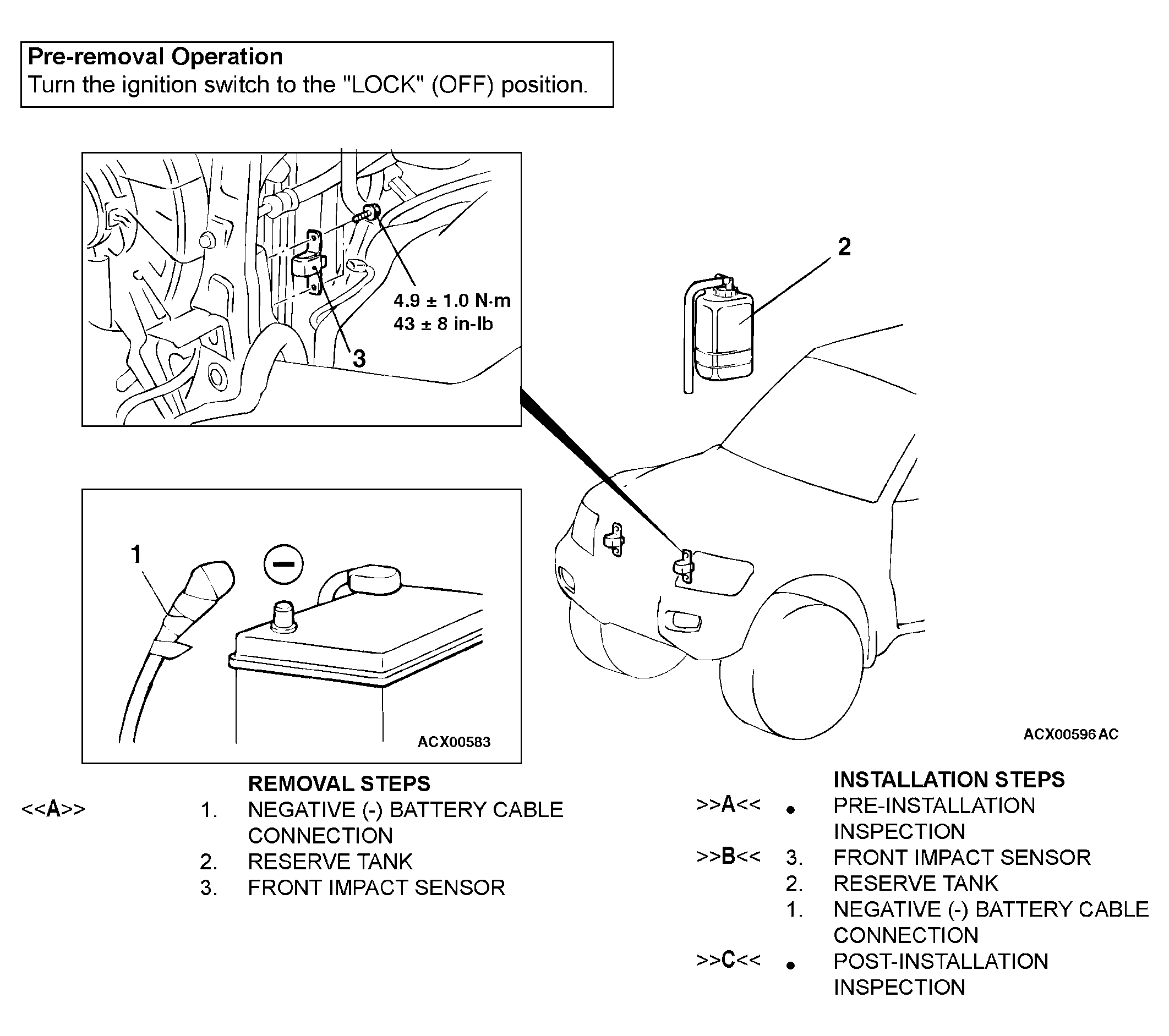

    Fig 1: Removal And Installation Of Front Impact Sensors
    G04268246Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
