Supplemental Restraint System: General Description: Schematic

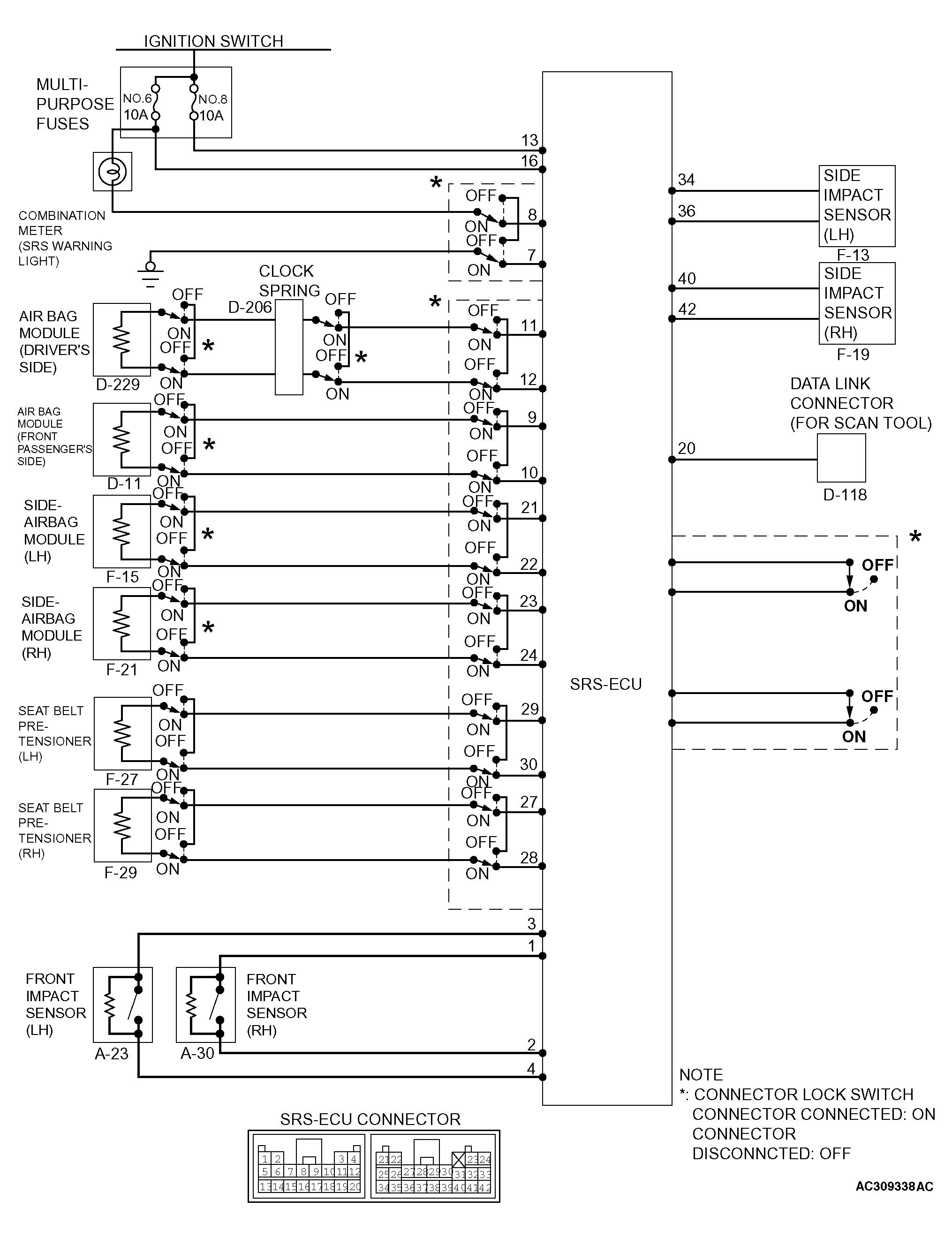

Fig 1: Schematic Diagram
G04267882Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
