Disassembly And Assembly: Notes

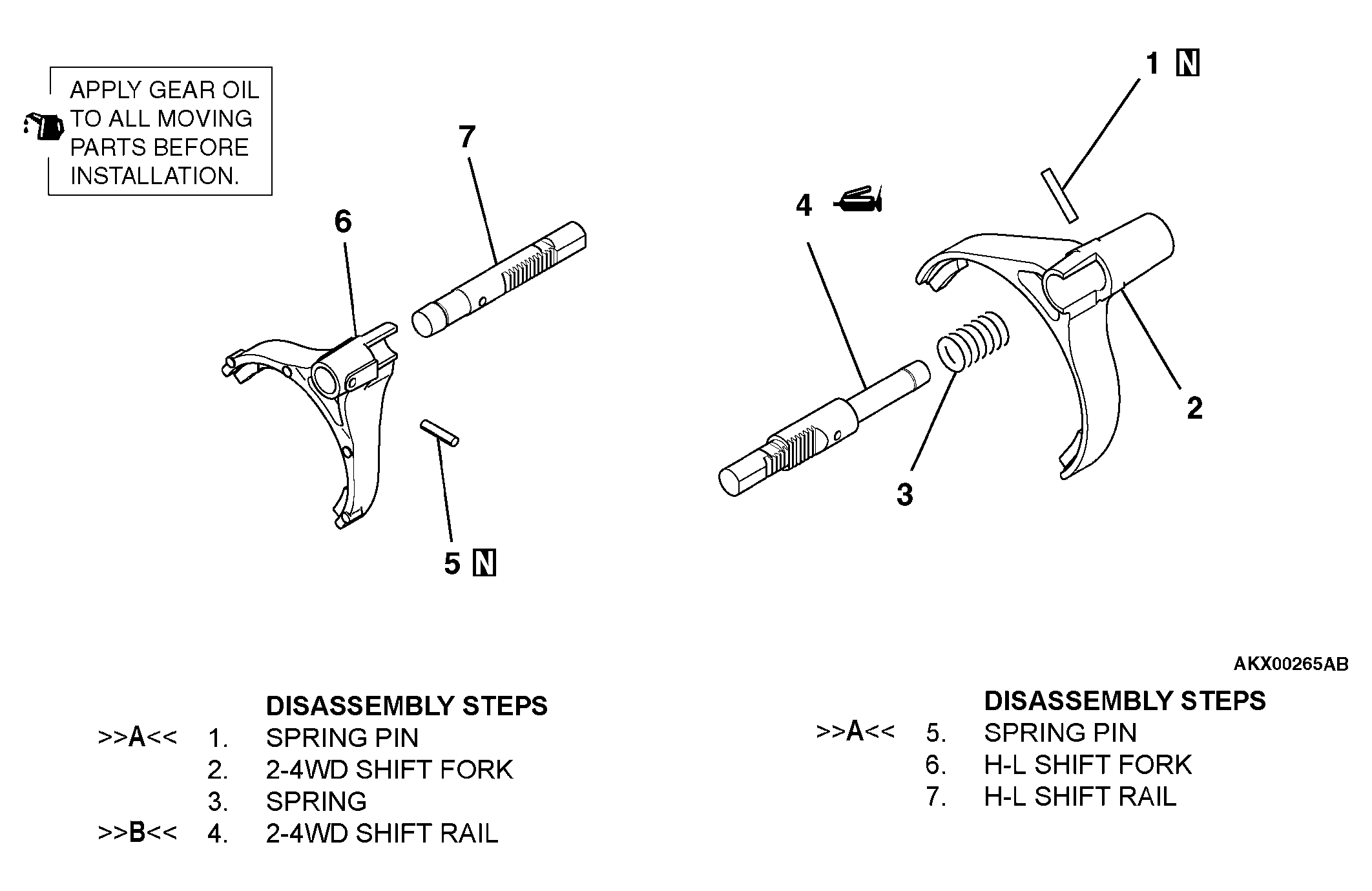

Fig 1: Disassembling/Assembling 2-4 Shift Rail/H-L Shift Rail
G04266553Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
