Disassembly And Assembly: Notes

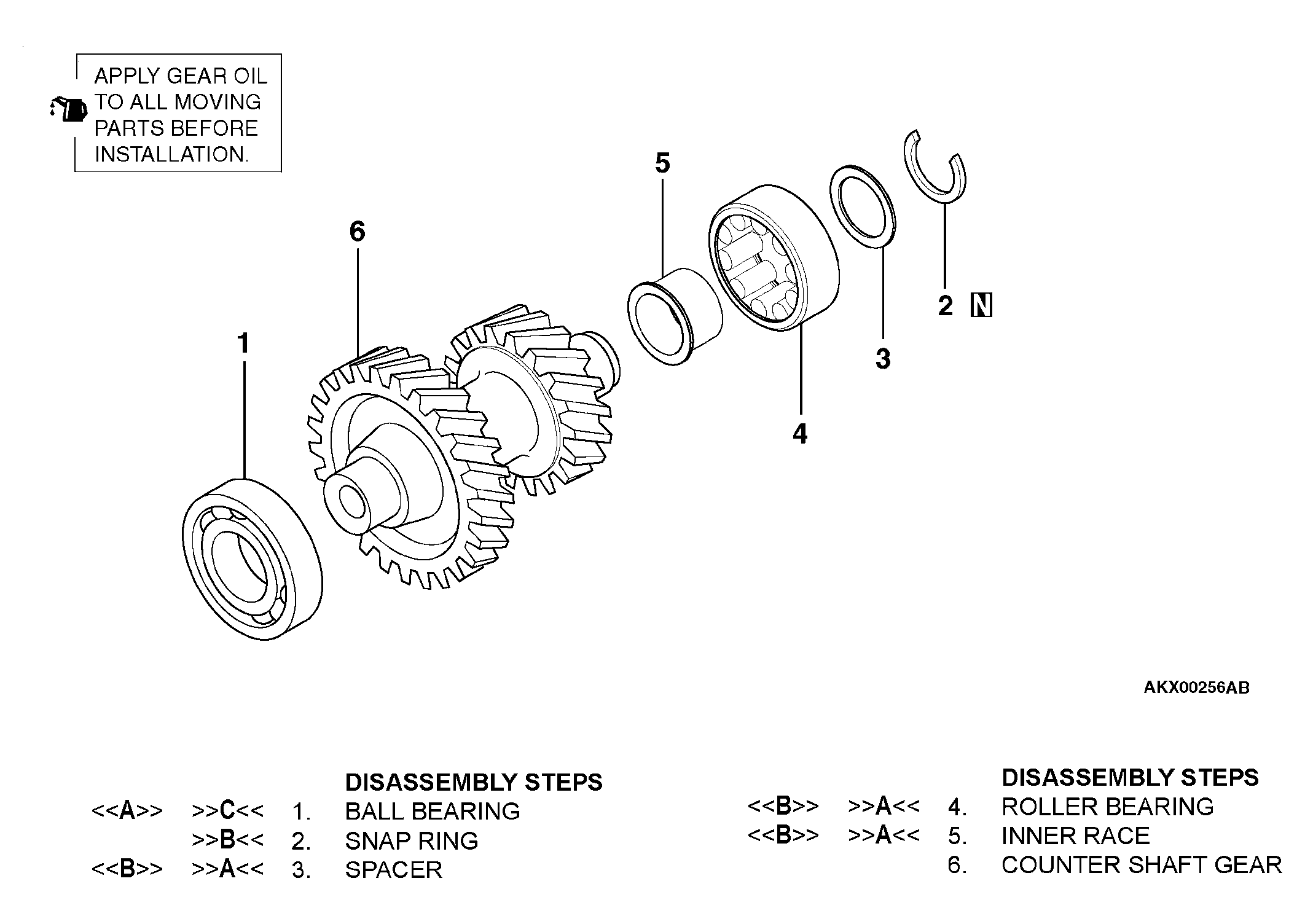

Fig 1: Disassembling/Assembling Countershaft Gear

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:

• MD998801: Bearing Remover
• MD998368: Bearing Installer
• MD998812: Installer Cap
• MD998818: Installer Adapter
