Hydraulic Control System
Hydraulic Control System

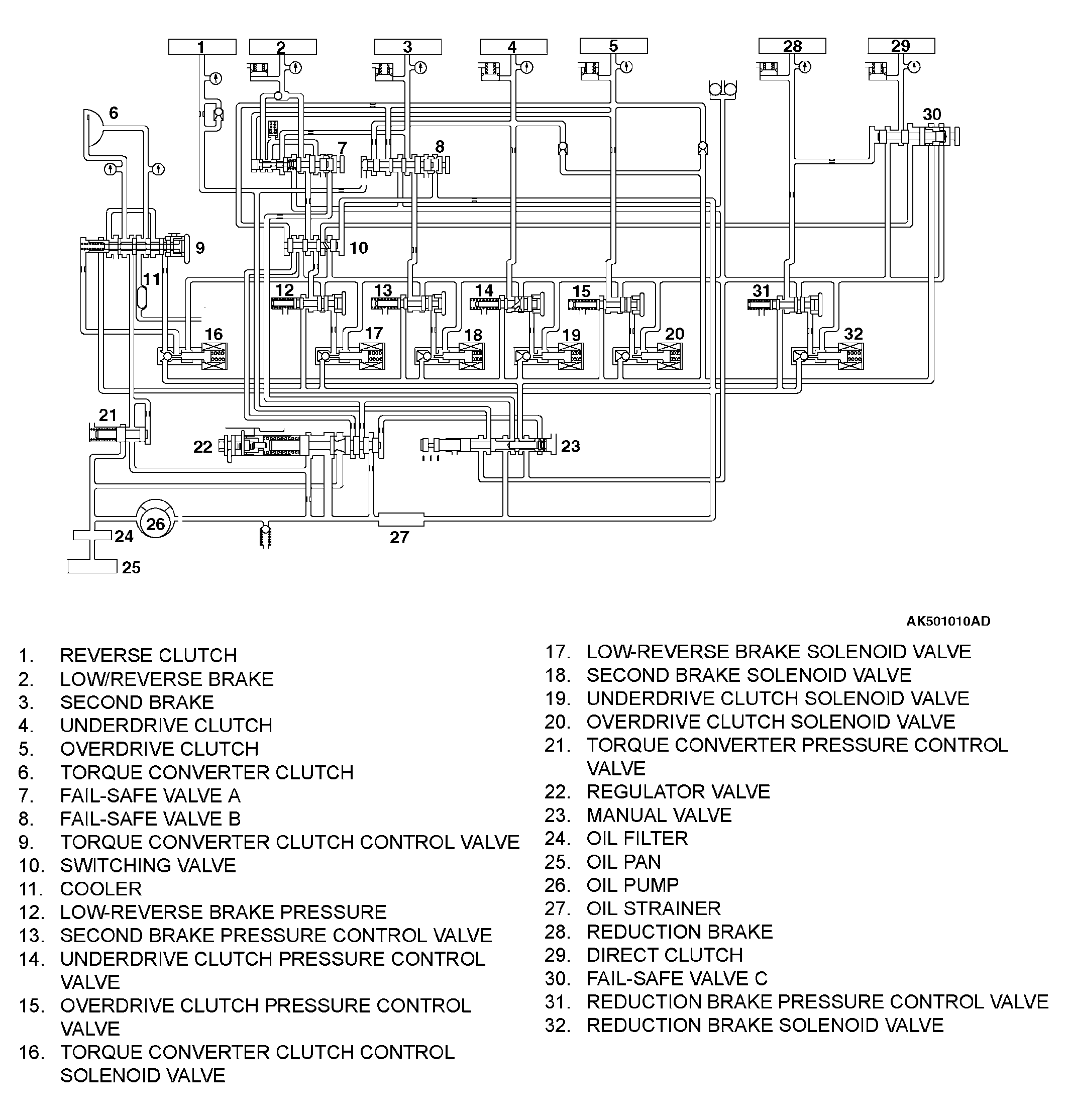

Fig 1: Hydraulic Control System Of Automatic Transmission
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
