General Information
›
Sectional View
Sectional View

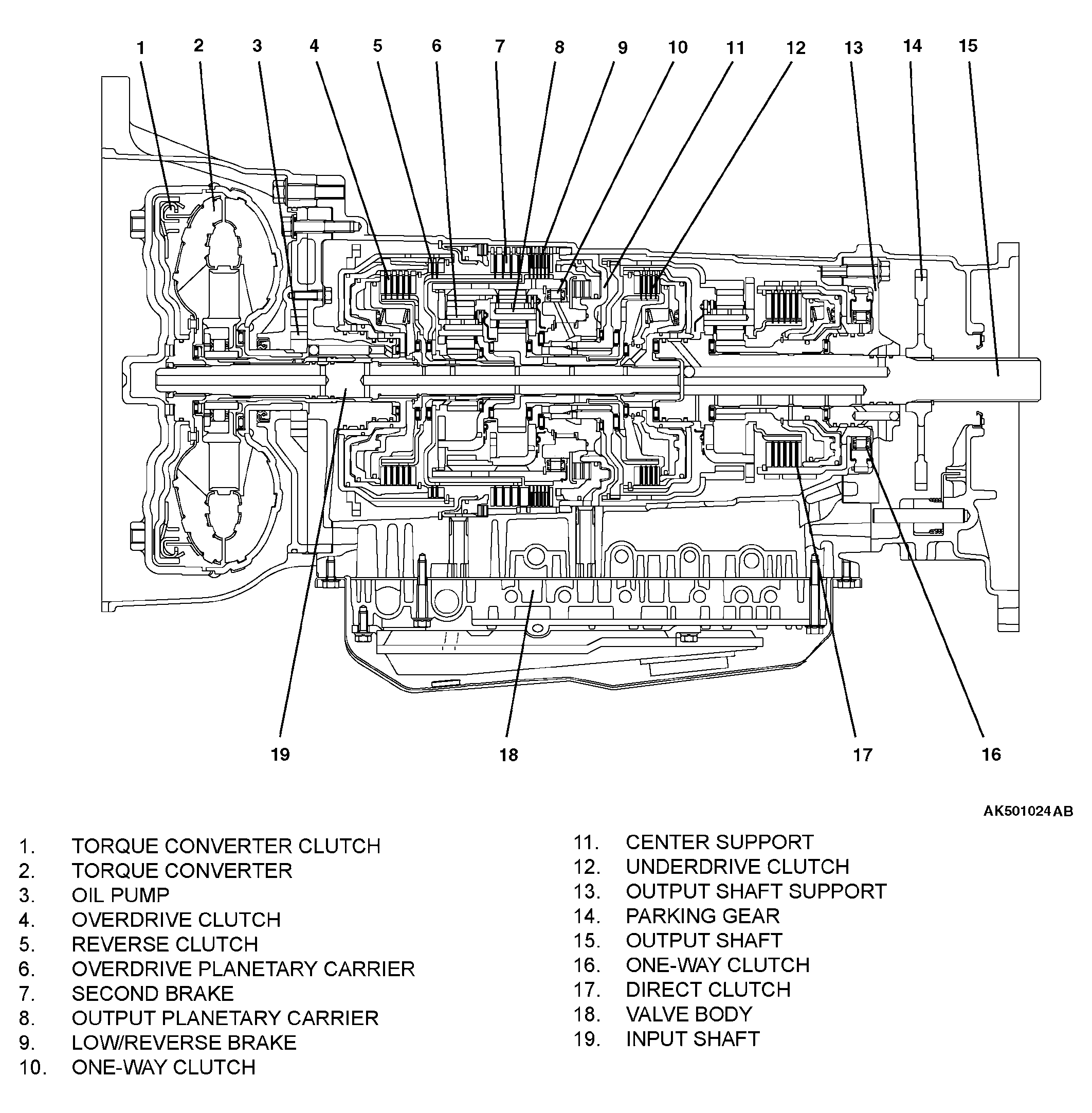

Fig 1: Sectional View Of Automatic Transmission (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 1: Sectional View Of Automatic Transmission (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
