Disassembly And Assembly: Notes

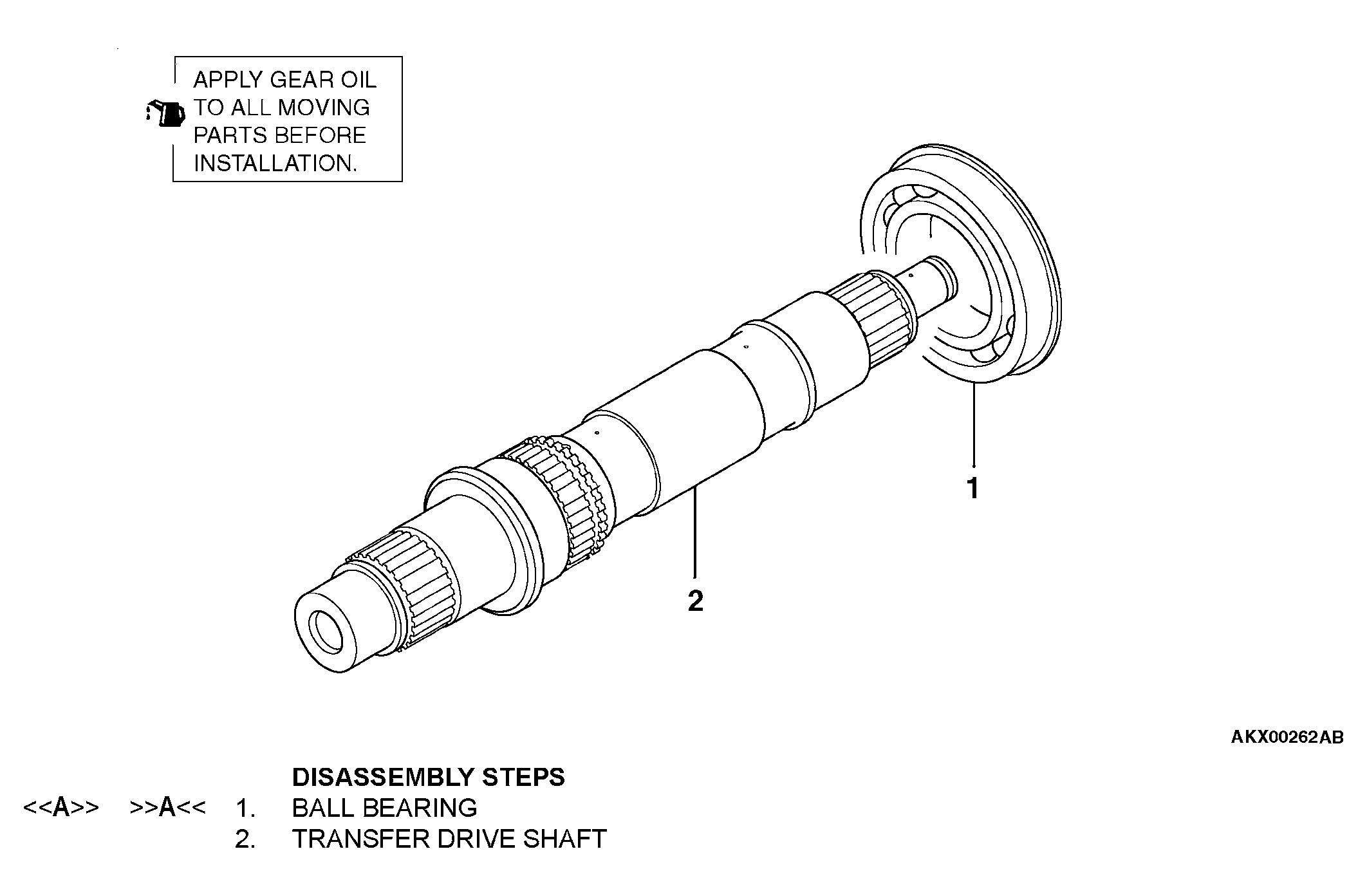

Fig 1: Disassembling/Assembling Transfer Drive Shaft

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools

• MD998192: Bearing puller
• MD998812: Installer Cap
• MD998814: Installer-200
• MD998830: Installer Adapter
• MD998917: Bearing Remover
