Actuator Test Reference Table: Notes

The scan tool activates the following actuators for testing.

NOTE: If the ABS-ECU runs down, actuator testing cannot be carried out.

NOTE: Actuator testing is only possible when the vehicle is stationary.

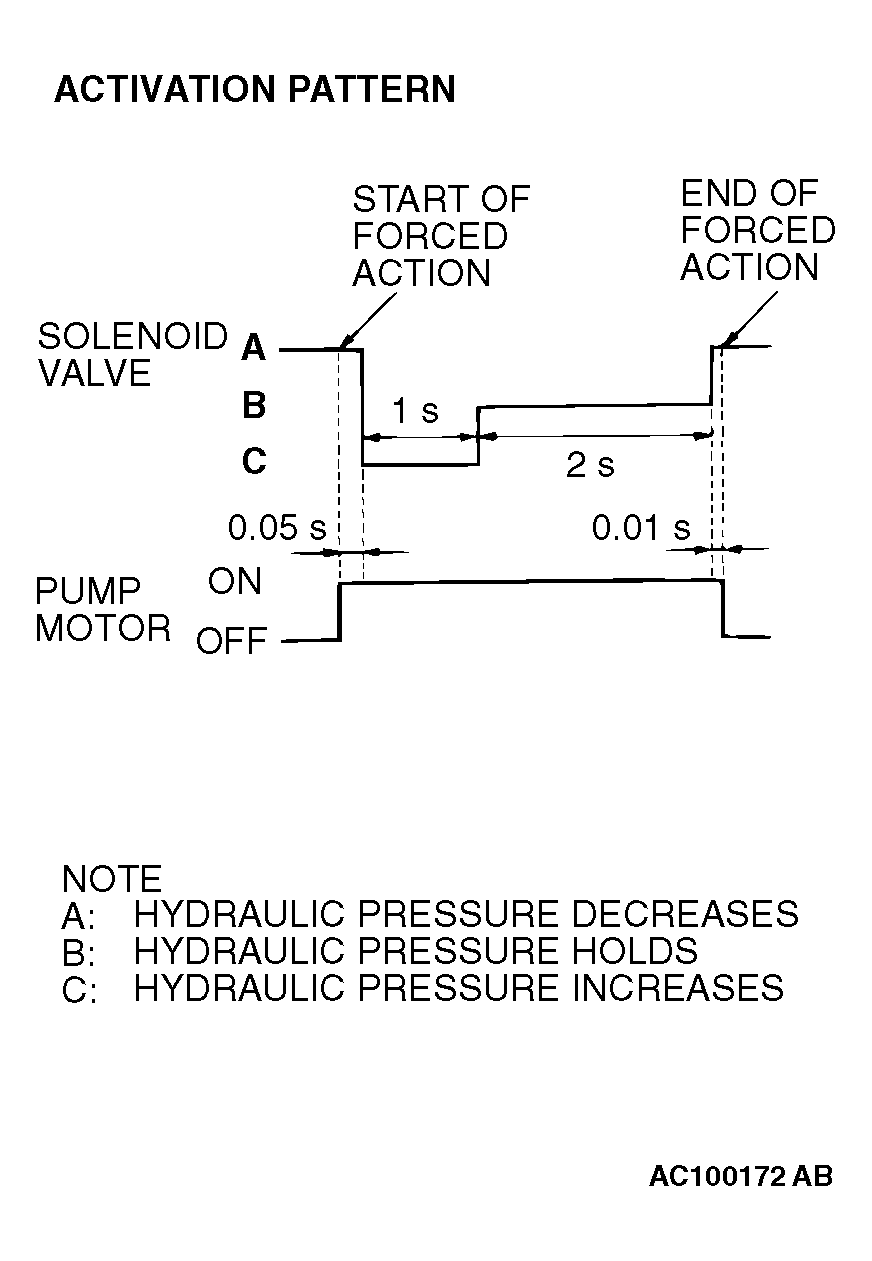

Fig 1: Identifying Actuator Activation Pattern

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
