Mitsubishi
›
2006
›
Outlander LS, AWD, Automatic
›
Repair and Diagnosis
›
Engine Mechanical
›
Starter
›
Starting System
›
Starter Motor Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

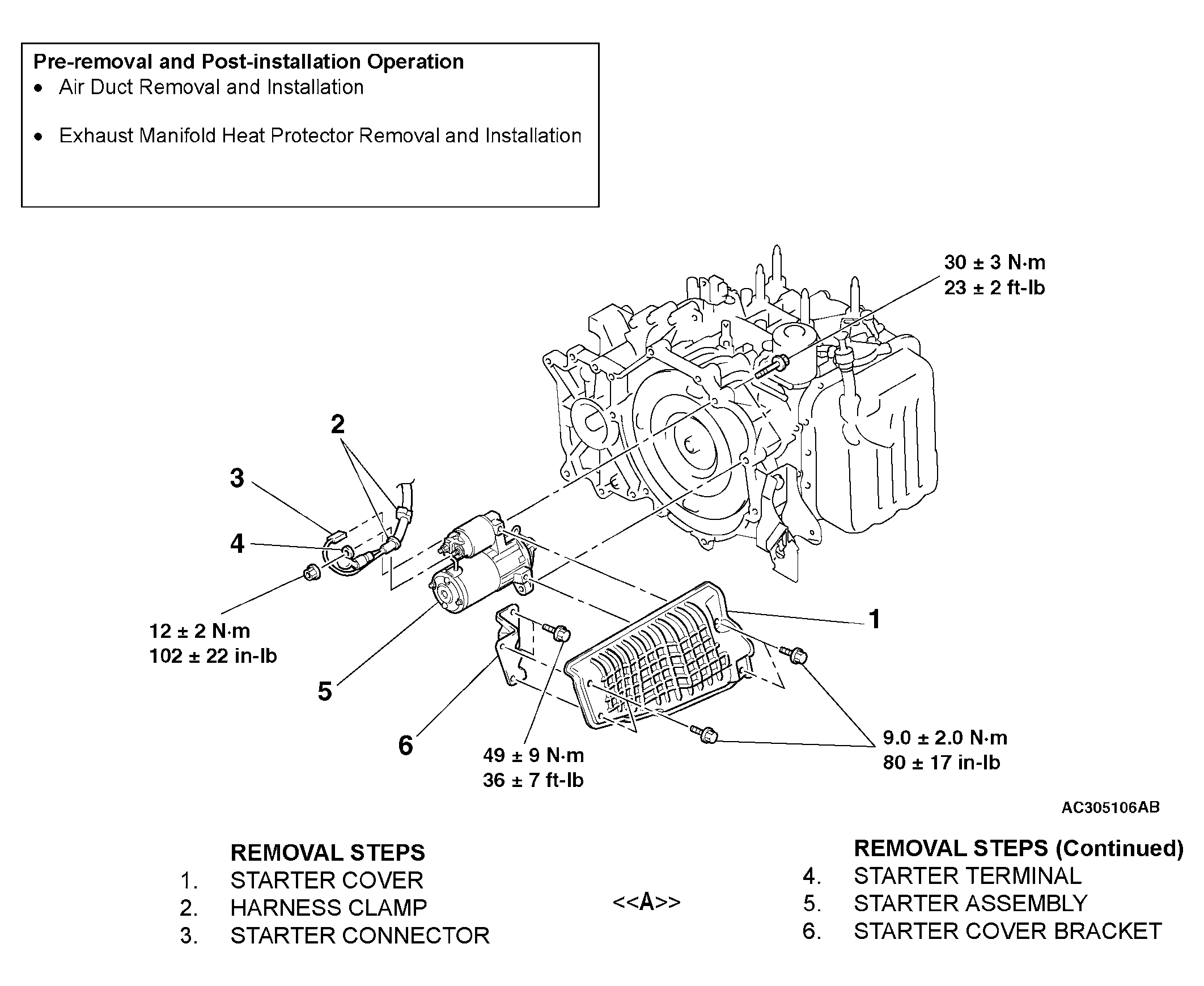

Fig 1: Removal And Installation Of Starter Motor Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
