Fuel Pump Module Disassembly And Assembly

NOTE: For removal and installation, refer to On-vehicle service - FUEL PUMP (MODULE) REPLACEMENT

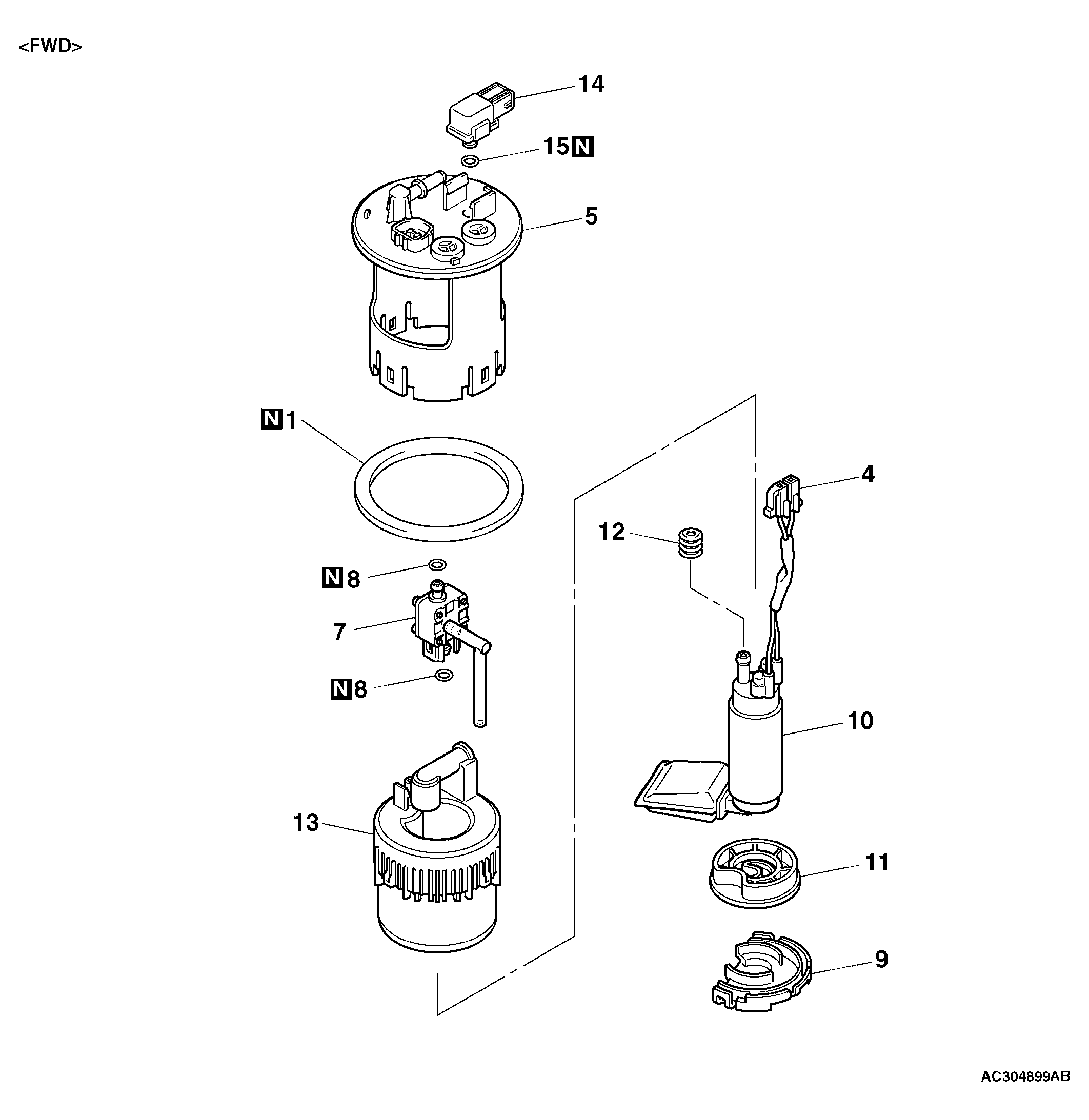

Fig 1: Exploded View Of Fuel Pump Module - FWD (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

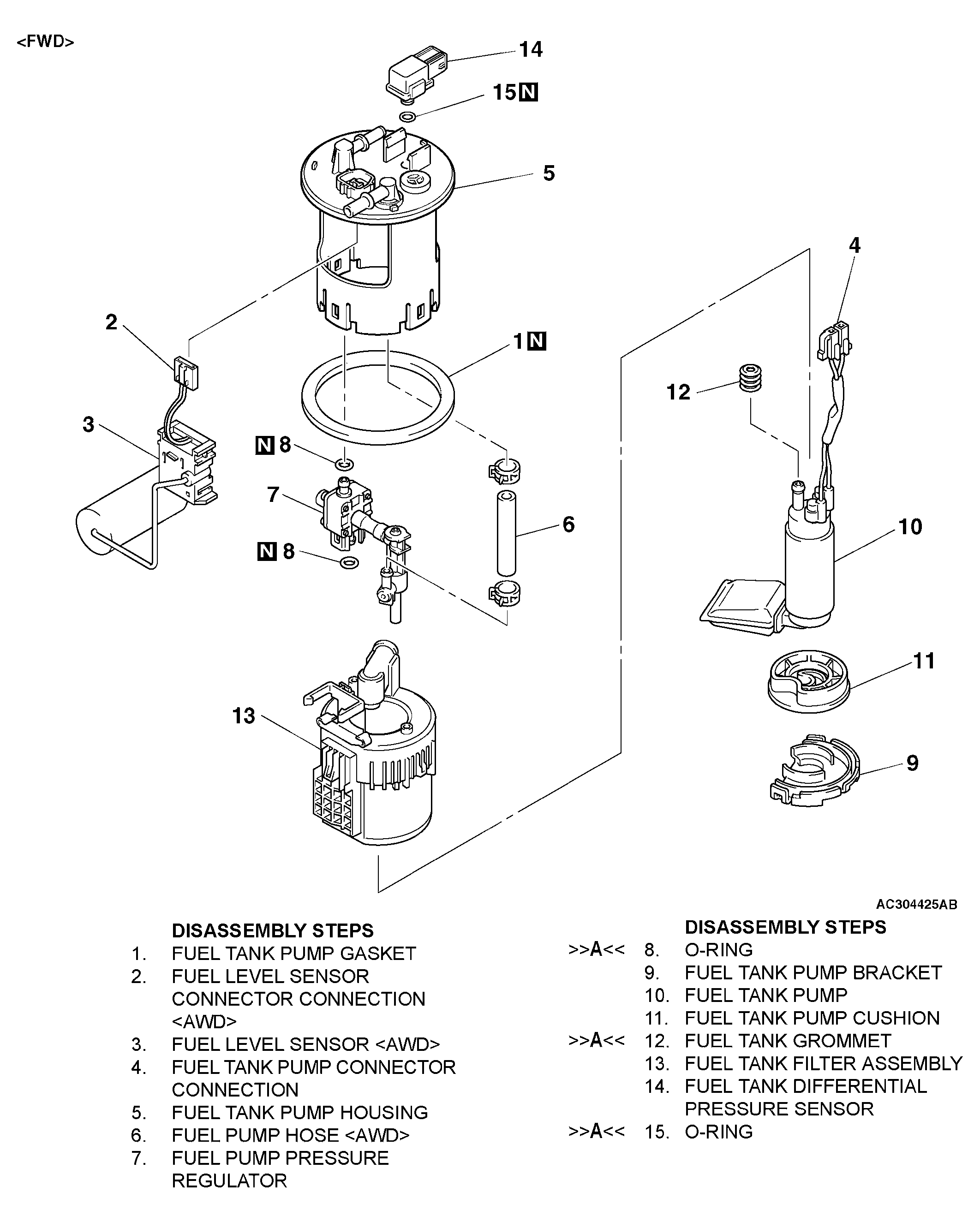

Fig 2: Exploded View Of Fuel Pump Module - FWD (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
