>>B<< Side Impact Sensor Installation
>>B<< Side Impact Sensor Installation
WARNING:
If the side impact sensor is not installed securely and correctly, the side-airbag may not operate normally.
Securely connect the connector.

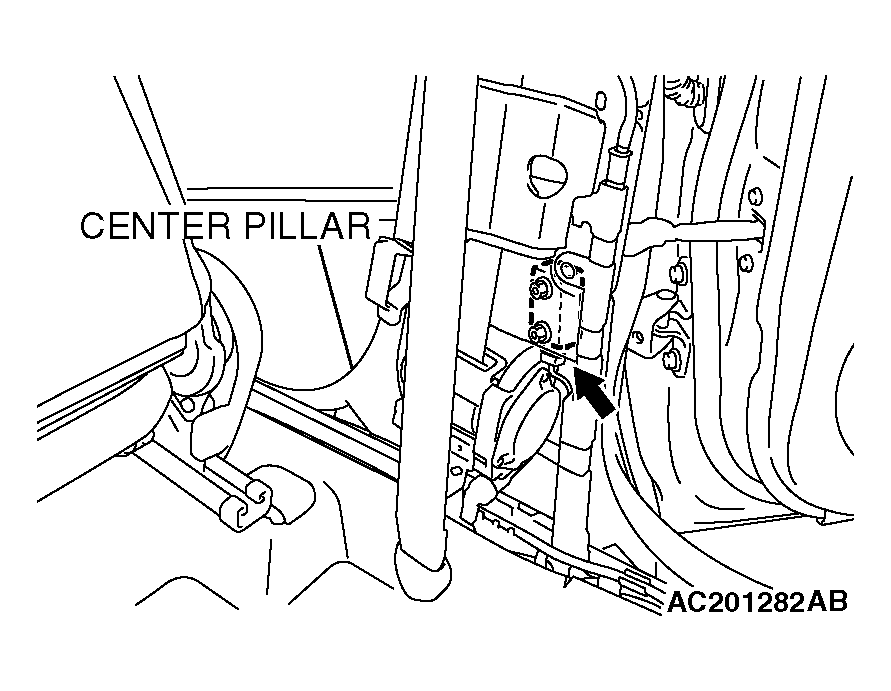

Fig 1: Identifying Side Impact Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
