FixVault
Home
›
Mitsubishi
›
2006
›
Outlander LS, AWD, Automatic
›
Repair and Diagnosis
›
Steering
›
Steering Column
›
Power Steering Hoses
›
Removal And Installation
›
Notes
Removal And Installation: Notes

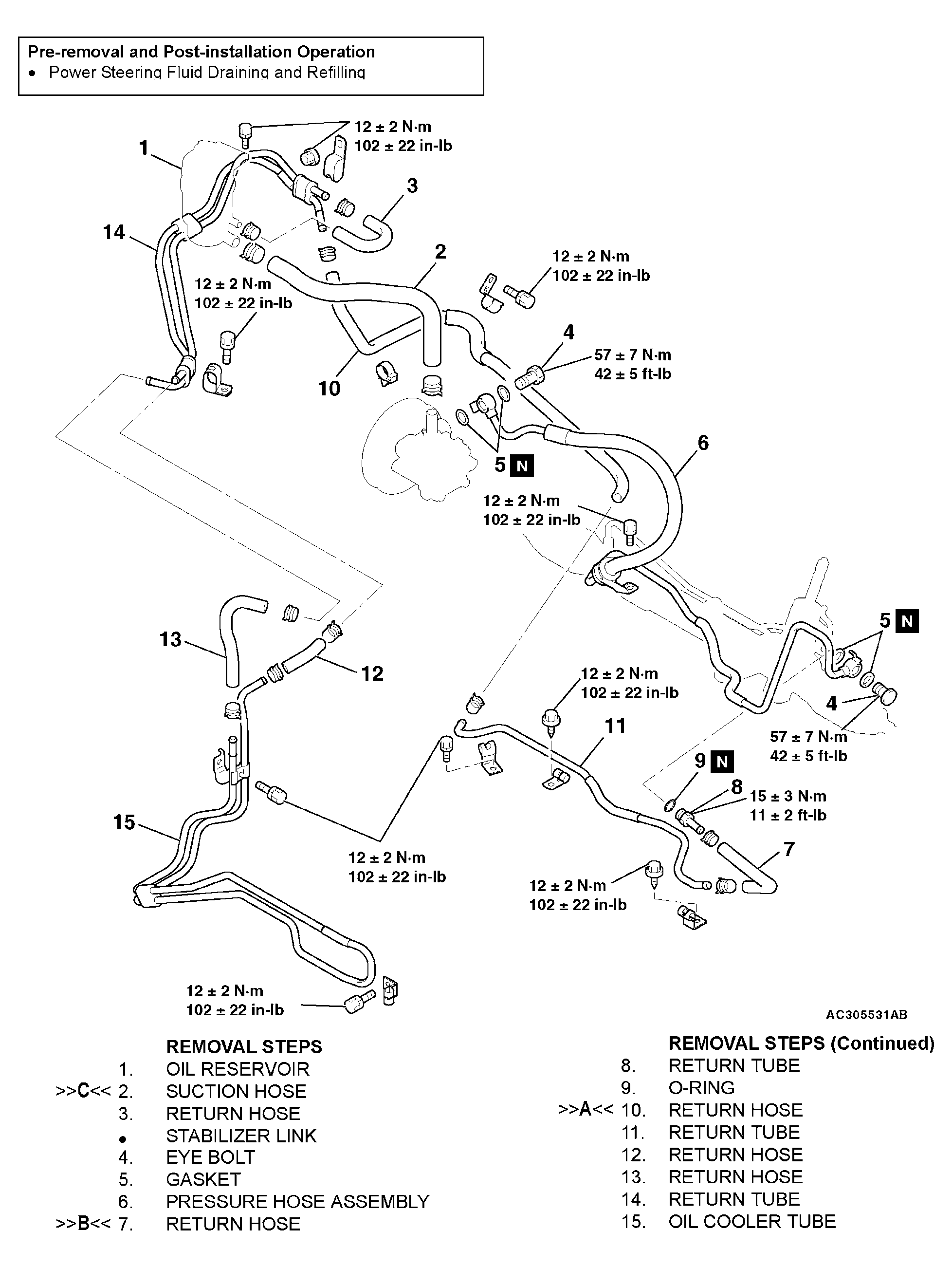

Fig 1: Removal And Installation Of Power Steering Hoses
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
