Disassembly And Assembly: Notes

CAUTION: Never disassemble the terminal assembly. It cannot be assembled.

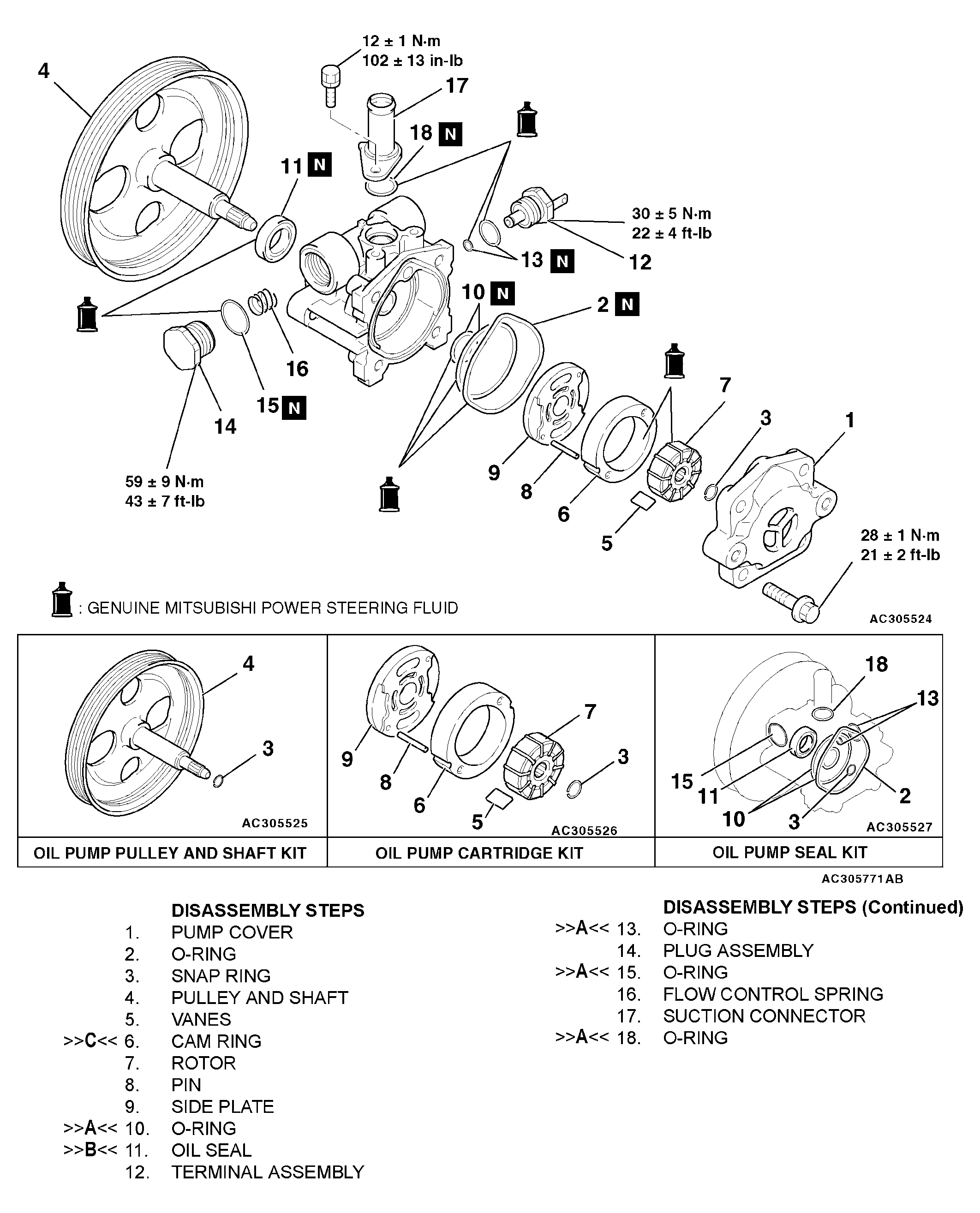

Fig 1: Exploded View Of Power Steering Oil Pump Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
