Home › Mitsubishi › 2006 › Outlander LS, AWD, Automatic › Repair and Diagnosis › Steering › Steering Column › Steering Column Shaft Assembly › Disassembly And Assembly › Notes

Disassembly And Assembly: Notes

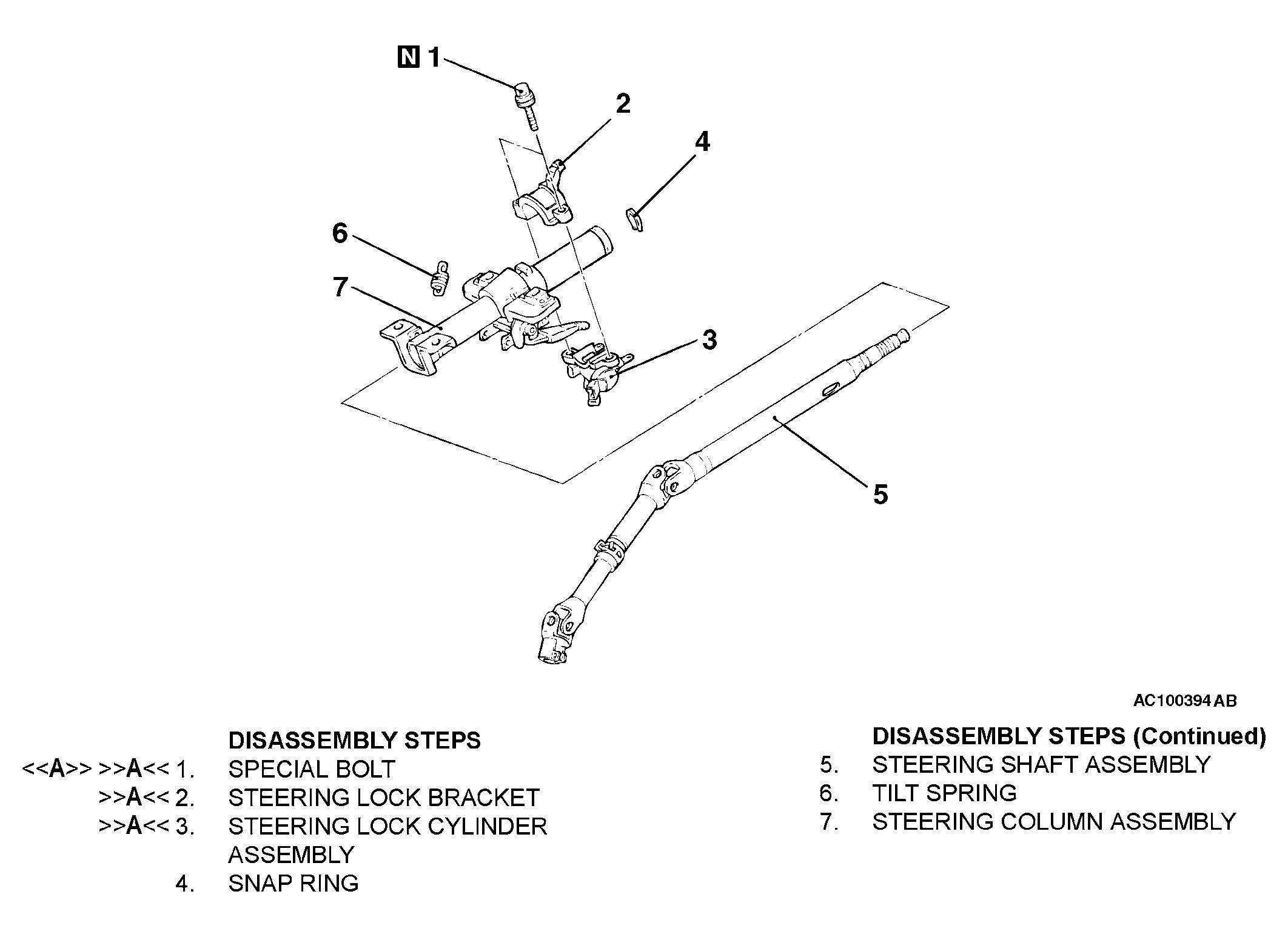

Fig 1: Exploded View Of Steering Column Shaft Assembly
G04303984Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
