Disassembly And Assembly: Notes

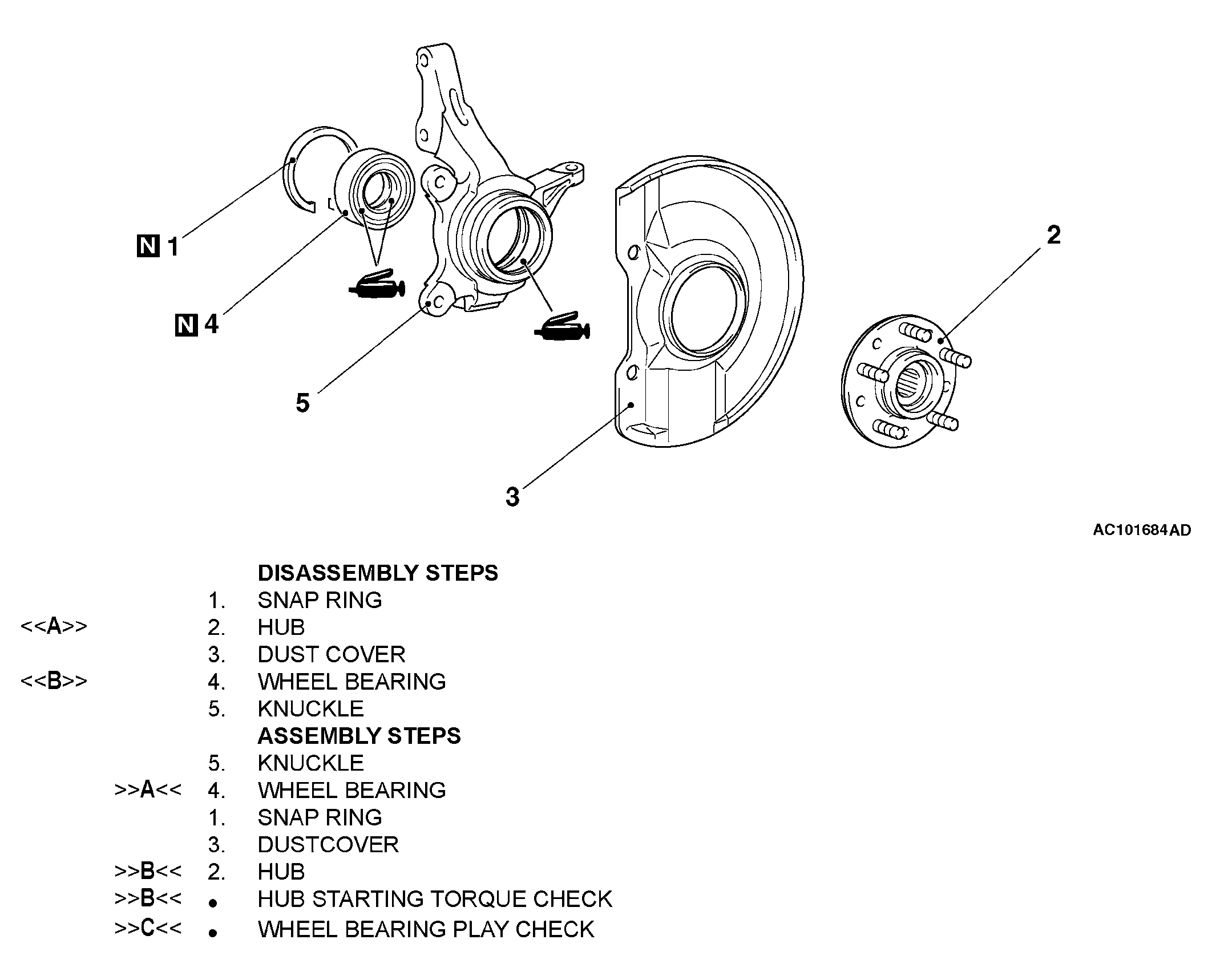

Fig 1: Exploded View Of Front Axle Hub And Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991000 (MB990998): Front Hub Remover and Installer
• MB991017: Front Hub Remover and Installer
• MB991056 or MB991355: Knuckle Arm Bridge
• MB990810: Side Bearing Puller
• MB990935: Installer Adapter
• MB990938: Brass Bar
• MB990890: Rear Suspension Bushing Base
• MB990883: Rear Suspension Bushing Arbor
• MB990326: Preload Socket
• MB990685: Torque Wrench
