Mitsubishi
›
2006
›
Outlander LS, AWD, Standard
›
Repair and Diagnosis (Single Page)
›
Electrical
›
Charging Systems
›
Charging System
›
Generator Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

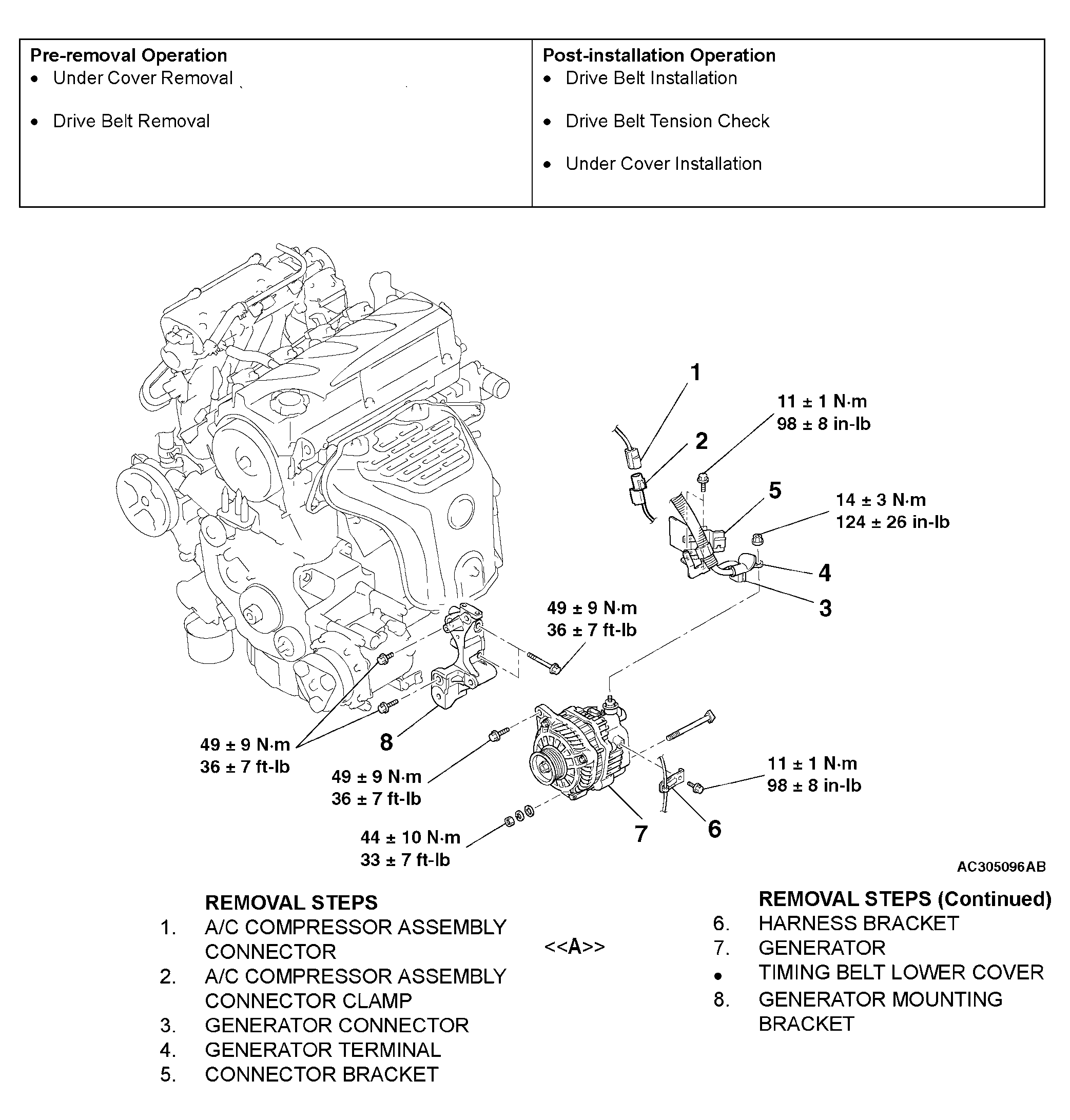

Fig 1: Removal And Installation Of Generator Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
