Liftgate Handle Play Check

Check that the liftgate handle play satisfies the standard value.
Standard value (A): 2.3 mm (0.091 inch)
If it deviates from the standard value, remove the liftgate lower trim (Refer to LIFTGATE TRIM .).
Remove the holder from the liftgate handle and then adjust according to the liftgate latch rod and liftgate handle connection position.

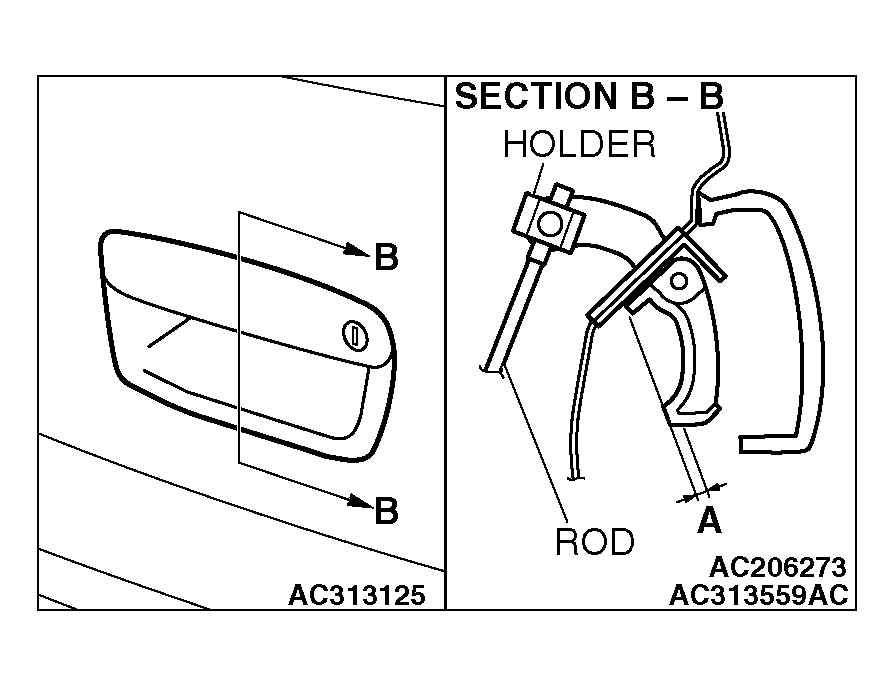

Fig 1: Checking Liftgate Handle Play

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
