Removal And Installation: Notes

CAUTION:

When the engine assembly replacement is performed, use scan tool MB991958 to initialize the learning value (refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).
*: indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

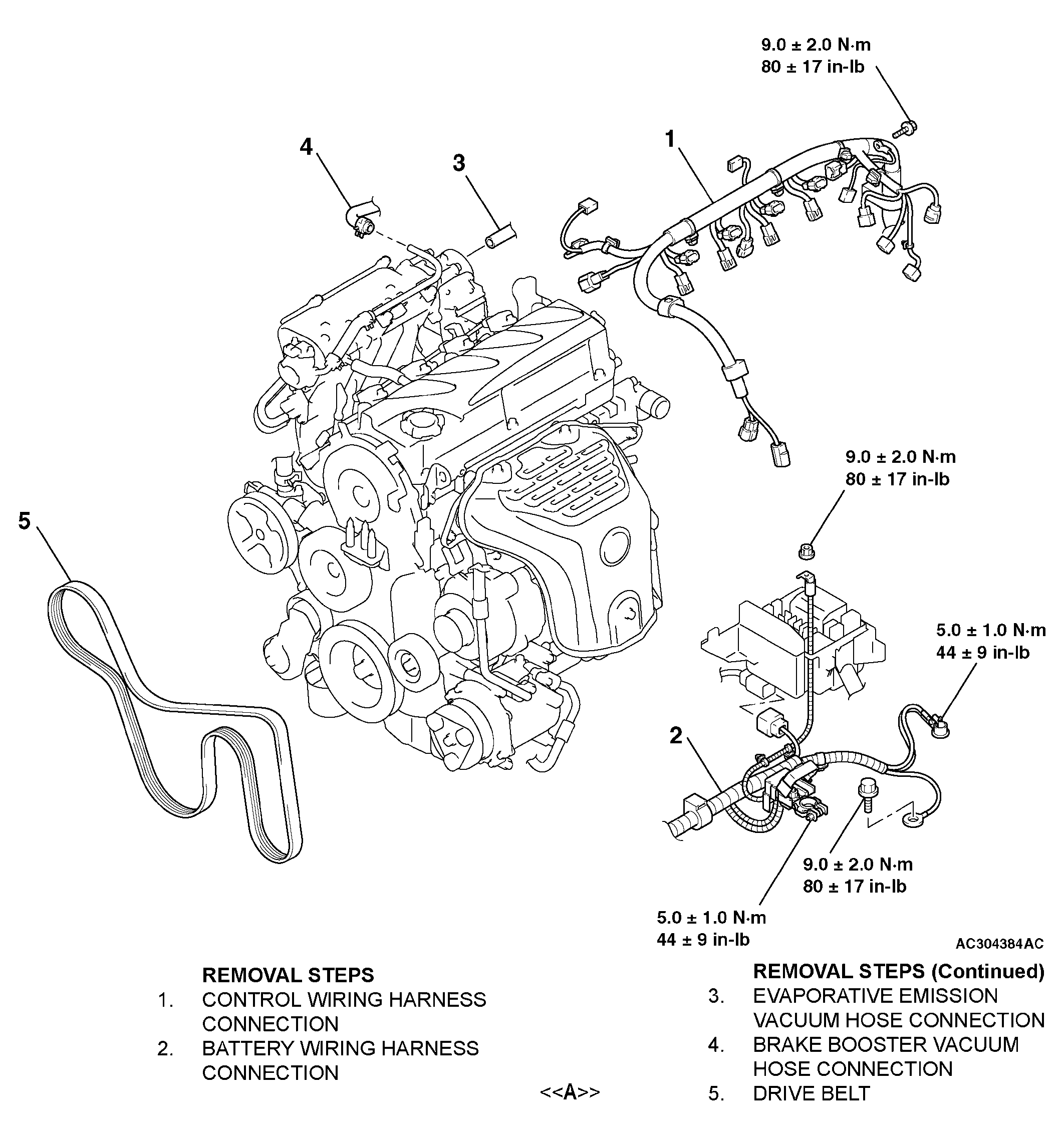

Fig 1: Removing/Installing Engine Assembly (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

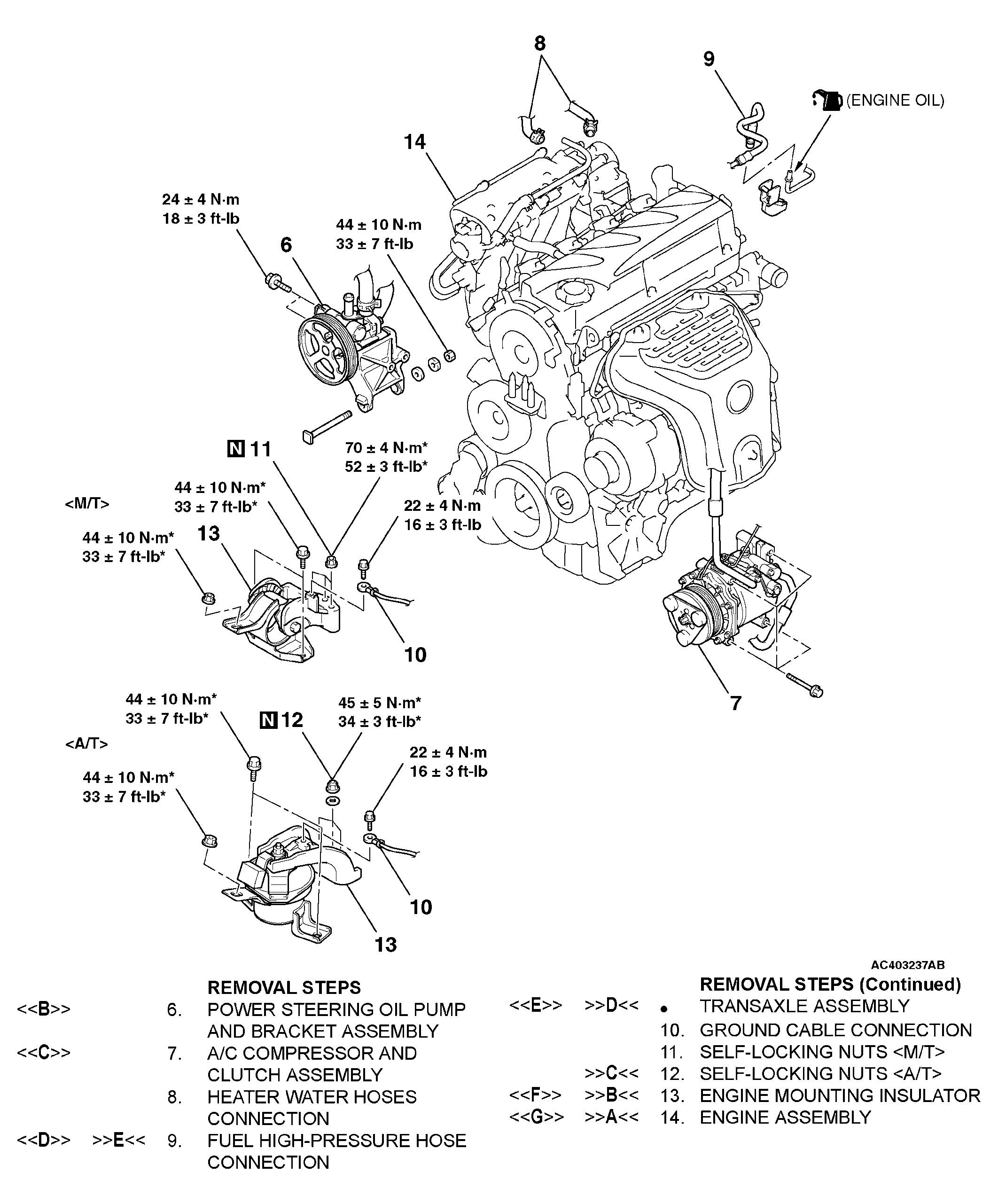

Fig 2: Removing/Installing Engine Assembly (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
