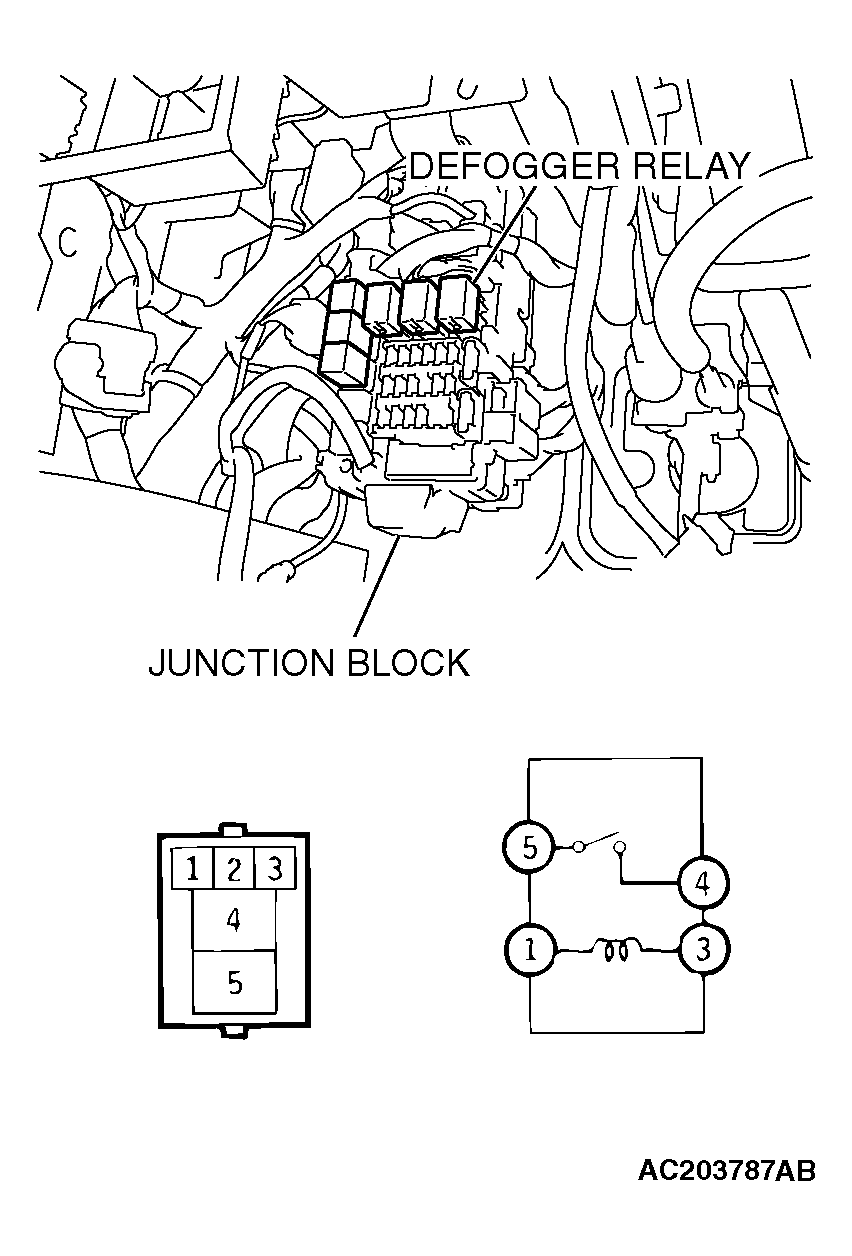

Defogger Relay Check
TESTER CONNECTION SPECIFIED CONDITION
| BATTERY VOLTAGE |
TESTER CONNECTION |
SPECIFIED CONDITION |
| Not supplied |
4-5 |
Open circuit |
- Connect terminal 1 to the positive battery terminal
- Connect terminal 3 to the negative battery terminal
|
4-5 |
Less than 2 ohms |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
