Mitsubishi
›
2006
›
Outlander LS, FWD, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control
›
Accelerator Cable And Pedal
›
Removal And Installation
›
Notes
Removal And Installation: Notes

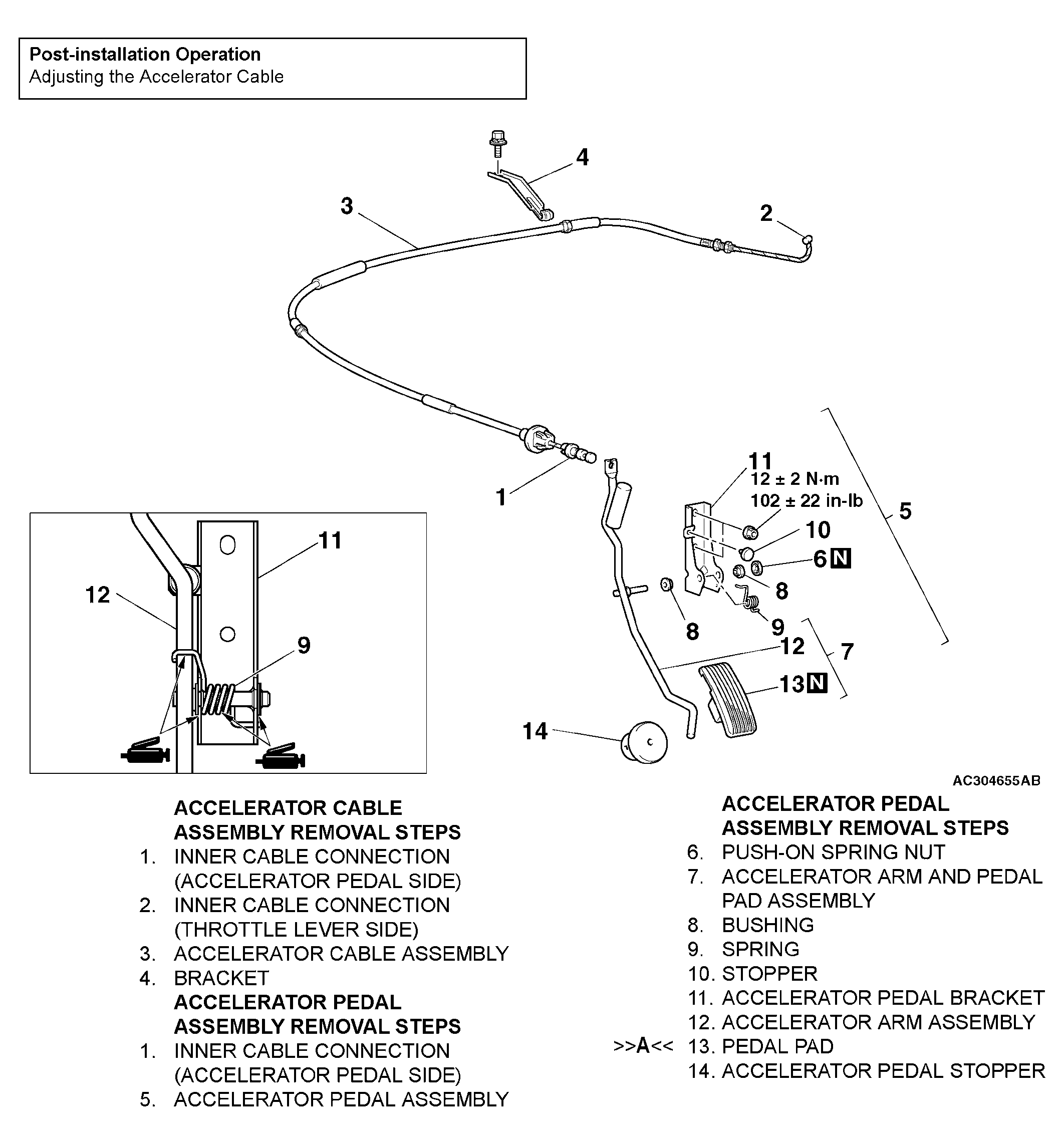

Fig 1: Removing/Installing Accelerator Cable And Pedal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
