Disassembly And Assembly: Notes

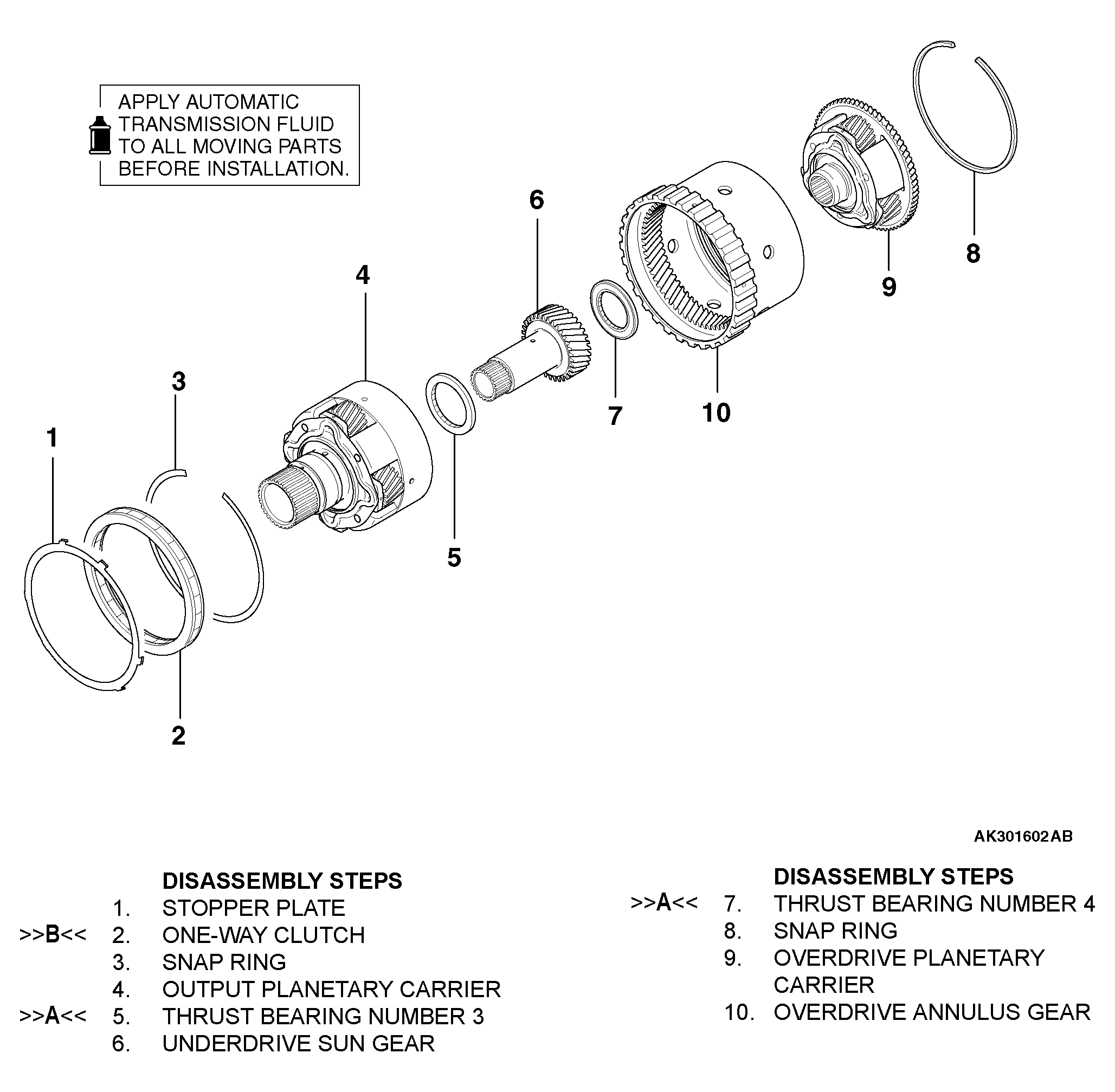

Fig 1: Disassembling/Assembling Of Planetary Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
