Combination Meter Assembly And Vehicle Speed Sensor
›
Combination Meter Assembly And Vehicle Speed Sensor
›
Disassembly And Assembly
Disassembly And Assembly

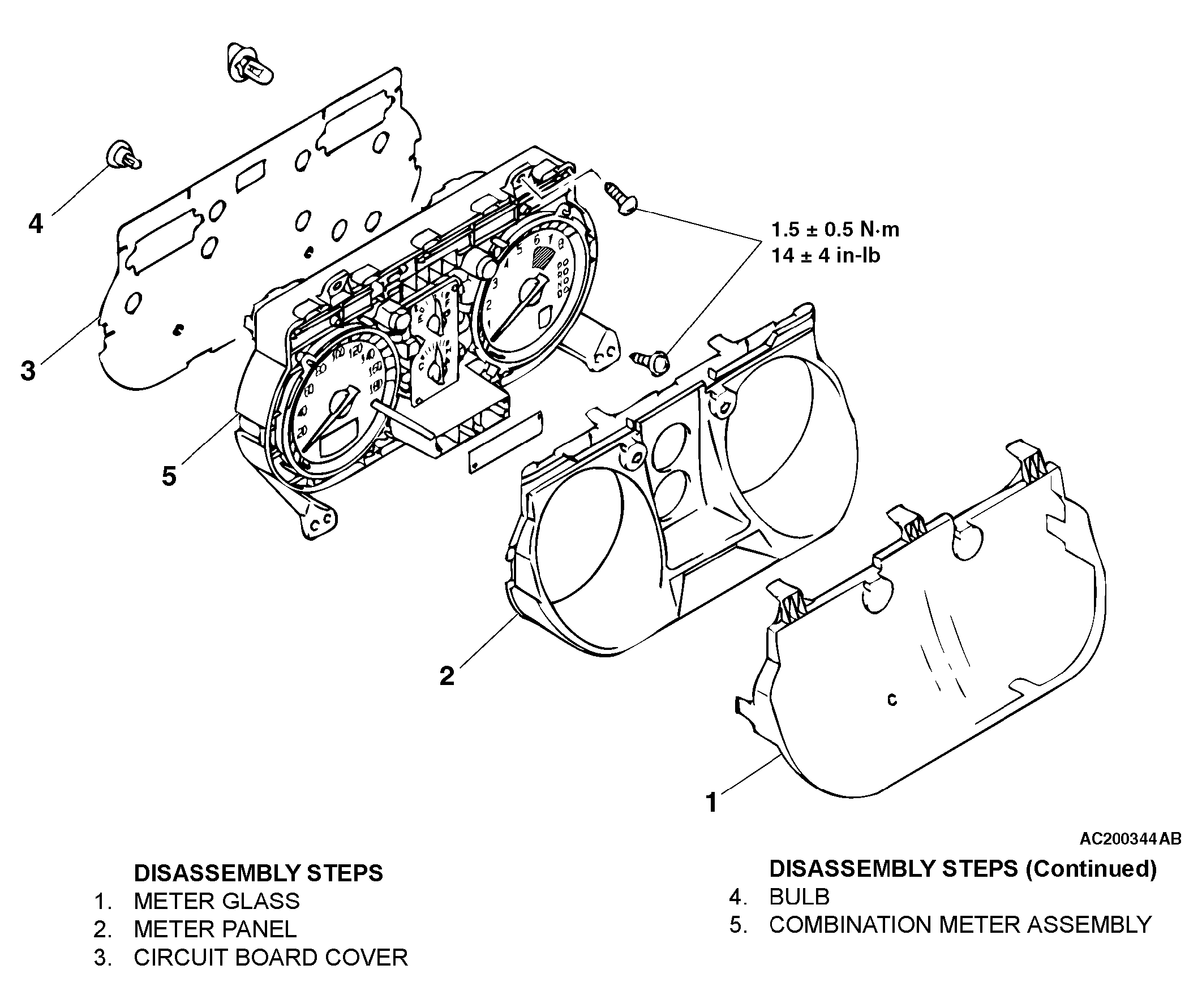

Fig 1: Exploded View Of Combination Meter Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
